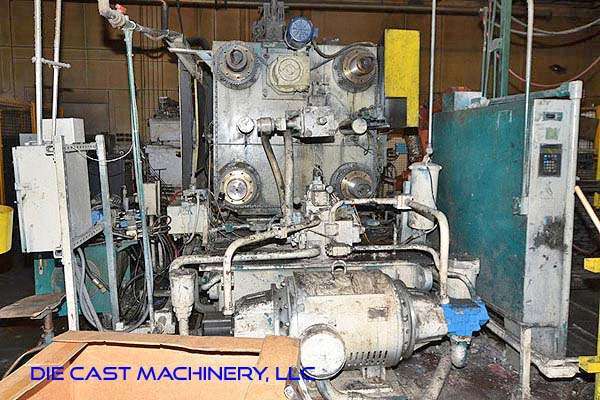

Used Birch Model: BMC-1000-A 1000 tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Birch |
| Model | BMC-1000-A |
| Size | 1000 tons |
| Inventory Number | DCM-3202 |
Birch - BMC-1000-A 1000 tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/01 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3202.
Features & Accessories
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Electric Motorized Die Height System
- Air Safety Ratchet Device
- Power Operator Side Safety Door
- Manual Helper Side Safety Door Operator
- Two (2) Auxiliary Hydraulic Moving Core Circuits
Item Specifications for DCM-3202
| US | Metric | |
| Locking Force: | 1000 tons | 907.19 tons |
| Tie Bar Diameter: | 8 inches | 203.2 mm |
| Clearance Between Tie Bars: | 42 x 42 inches | 1066.8 x 1066.8 mm |
| Die Thickness (minimum - maximum): | 24 - 44 inches | 609.6 - 1117.6 |
| Die Stroke (minimum - maximum): | 30 inches | 406 - 558 mm |
| Moving Platen Size (H x V x T): | 59.5 x 59.5 x 13 inches | 1511 x 1511 x 330 mm |
| Shot Positions: | Center, -6 , -9 inches | 0, 152.4, 228.6 mm below center |
| Shot Intensification: | Piston Bottle | Piston Bottle |
| Cylinder Stroke: | 26 - 30 inches | 660 - 762 mm |
| Power: | 75 HP | 55.95 kw |
| Machine Size: | 28 x 8 x 9 feet | 8.53 x 2.44 x 2.74 meters |
| Machine Weight: | 92,000 pounds | 46,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Lindberg MPH 1800 Pound Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace DCM-3203
- Sold – Advance Products 1200 SL Multi-Link Automatic Ladle for Aluminum and Brass Die Casting and Foundry Operations DCM-3204
- Sold – Rimrock 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3205
- Sold – ABB 2.40-120 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3206
- Sold – Visi-Trak Die Cast Monitoring and Data Collection Unit with Graphic HMI Interface DCM-3207
Description
Used, Birch Model BMC-1000-A 1000 tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Twin Cylinder Hydraulic Bumper Plate Ejection, Electric Motorized Die Height System, Air Safety Ratchet Device, Power Operator Side Safety Door, Manual Helper Side Safety Door Operator, Two (2) Auxiliary Hydraulic Moving Core Circuits, Allen Bradley SLC 5/01 controls, second Hand, DCM-3202
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
