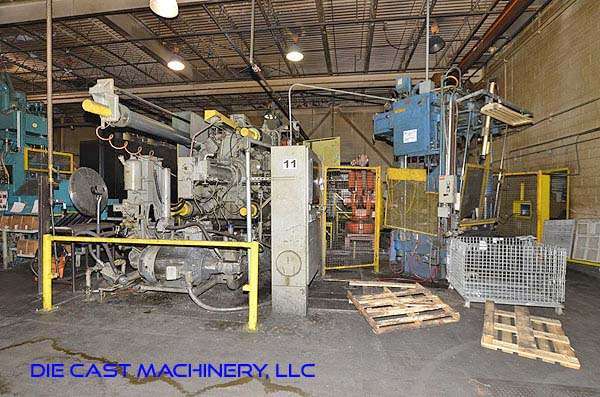

Used Prince Model: 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 16| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1246 CCA |
| Size | 1200 Ton |
| Inventory Number | DCM-3194 |
Prince - 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 2/30 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3194.
Features & Accessories
- Hydraulic Motorized Die Height Adjustment System and Individual Tie Bar Adjustment System
- Manual Helper Side Safety Door and Power Side Safety Door Operator
- Twin Cylinder Hydraulic Bumper Plate Ejection System and Piston Bottle Intensification
- Trabon Automatic Lubrication System and Air Safety Ratchet
- Adjustable Die Stroke and Top Helper Side Automatic Tie Bar Puller
- One (1) Auxiliary Hydraulic Core Circuits and Electronic Strain Gauges
Item Specifications for DCM-3194
| US | Metric | |
| Rated Tonnage: | 1200 tons | 1088 tons |
| Tie Bar Diameter: | 9.5 inches | 241 mm |
| Clearance between Tie Bars: | 46.5 x 46.5 inches | 1181 x 1181 mm |
| Front Platen Size (T x W x H): | 17.75 x 75 x 85 inches | 450 x 1778 x 2032 mm |
| Moving Platen Size (T x W x H): | 15.75 x 75 x 75 inches | 400 x 1905 x 1905 mm |
| Die Thickness (minimum to maximum): | 24 - 44 inches | 609 - 1117 mm |
| Die Stroke: | 30 inches | 762 mm |
| Shot Position Standard: | Center and 12 inches below | Center and 304 mm below |
| Shot Cylinder Stroke: | 30 - 36 inches | 762 - 914 mm |
| Motor Size: | (2) 75 and 15 HP | (2) 55.95 and 11.19 Kw |
| Machine Size (L x W x H): | 36 x 9 x 13 feet | 10.97 x 2.74 x 3.96 meters |
| Machine Weight: | 165,000 pounds | 75,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Dake 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3193
- Sold – ABB 2.40-120 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3195
- Sold – Rimrock 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations, Epic Controls DCM-3253
Description
Used, Prince Model 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment System and Individual Tie Bar Adjustment System, Manual Helper Side Safety Door and Power Side Safety Door Operator, Twin Cylinder Hydraulic Bumper Plate Ejection System and Piston Bottle Intensification, Trabon Automatic Lubrication System and Air Safety Ratchet, Adjustable Die Stroke and Top Helper Side Automatic Tie Bar Puller, One (1) Auxiliary Hydraulic Core Circuits and Electronic Strain Gauges, Allen Bradley PLC 2/30 controls, second Hand, DCM-3194
