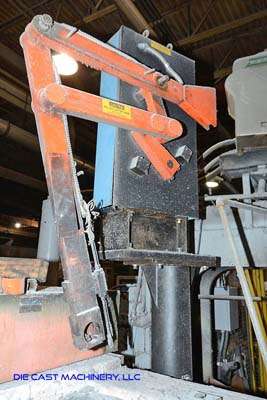

Used Advance Products Model: SL 1200 HS (Helper Side Unit) 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Advance Products |
| Model | SL 1200 HS (Helper Side Unit) |
| Size | 1200 SL |
| Inventory Number | DCM-3170 |
Advance Products - SL 1200 HS (Helper Side Unit) 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, SL 1200H Controls
View Available Automation (Die Cast)
Questions? Call (847) 360-9170 and mention DCM-3170.
Features & Accessories
- Auto Teach Mode
- Advance Forward on Pour Command - Pour Forward
- Helper Side Unit
- Adjust shot weight on the fly during operation
- LCD Color Touch-Screen HMI with up to 500 program storage
- Equipment with Remote Operator Push-Button Control Station
Item Specifications for DCM-3170
| US | Metric | |
| Total Stroke (Maximum): | Adjustable 71 inches | Adjustable 1800 mm |
| Forward Stroke (Maximum): | Adjustable 50 inches | Adjustable 1270 mm |
| Reach Back: | Adjustable 21 inches | Adjustable 530 mm |
| Pour Capacity (Aluminum): | 25 pounds | 11 Kg |
| Cycle Speed: | Adjustable | Adjustable |
| Power Requirements | 208-230/3/60 20 amp | 208-230/3/60 20 amp |
| Motor Drive: | Brushless Servo | Brushless Servo |
| Side of Operation: | Helper Side | Helper Side |
| HMI Interface: | Touch-Screen Color LCD | Touch-Screen Color LCD |
| Program Storage Capacity: | 500 programs | 500 programs |
| Control Weight: | 250 pounds | 114 KG |
| Mechanism Weight (power-head): | 750 pounds | 341 KG |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Reis Trim Press Model: SEP 10-965 65 Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3165
- Sold – HPM Model: II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3166
- Sold – Rimrock Model: 410 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3168
- Sold – ABB Model: IRB 6600 2.55 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3169
Description
Used, Advance Products Model SL 1200 HS (Helper Side Unit) 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Auto Teach Mode, Advance Forward on Pour Command - Pour Forward, Helper Side Unit, Adjust shot weight on the fly during operation, LCD Color Touch-Screen HMI with up to 500 program storage, Equipment with Remote Operator Push-Button Control Station, SL 1200H controls, second Hand, DCM-3170
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
