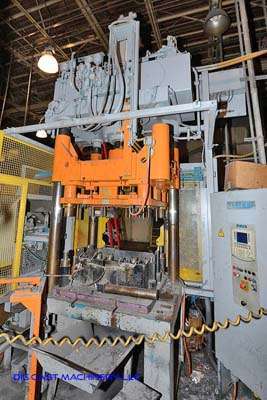

Used Reis Trim Press Model: SEP 10-965 65 Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Reis Trim Press |
| Model | SEP 10-965 |
| Size | 65 Ton |
| Inventory Number | DCM-3165 |
Reis Trim Press - SEP 10-965 65 Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press, Siemens Simatic KEB Controls
Questions? Call (847) 360-9170 and mention DCM-3165.
Features & Accessories
- Air Safety Ratchet
- T-Slotted Moving and Bed Platens
- Hydraulic Ejector Plate
- Automatic Lubrication System
- Top Mounted Hydraulics
Item Specifications for DCM-3165
| US | Metric | |
| Pressing Tonnage: | 65 tons | 58.97 metric tons |
| Number of Columns: | 3 | 3 |
| Column Diameter: | 5 inches | 127 mm |
| Daylight: | 48 inches | 1219 mm |
| Stroke: | 36 inches | 914 |
| Shut Height: | 12 inches | 305 mm |
| Clearance between Tie Bars (Left to Right): | 39 inches | 991 mm |
| Clearance between Tie Bars (Front to Back): | 28 inches | 711 mm |
| Bed Size (Left to Right by Front to Back): | 31 x 23 inches | 787 x 584 mm |
| Cut out Size in Bed: (L/R x F/B): | 53 x 43 inches | 1346 x 1092 mm |
| Overall Size (L x w x H): | 9 x 5 x 15 feet | 2743 x 1524 x 4572 mm |
| Estimate Machine Weight: | 14,330 lbs | 6,500 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM Model: II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3166
- Sold – Rimrock Model: 410 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3168
- Sold – ABB Model: IRB 6600 2.55 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3169
- Sold – Advance Products Model: SL 1200 HS (Helper Side Unit) 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-3170
Description
Used, Reis Trim Press Model SEP 10-965 65 Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, T-Slotted Moving and Bed Platens, Hydraulic Ejector Plate, Automatic Lubrication System, Top Mounted Hydraulics, Siemens Simatic KEB controls, second Hand, DCM-3165
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
