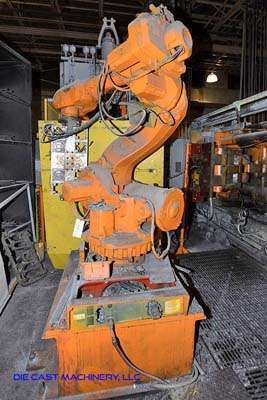

Used ABB Model: IRB 6600 2.55 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings
1 / 6| Status | Sold |
|---|---|
| Manufacturer | ABB |
| Model | IRB 6600 |
| Size | 2.55 Meter |
| Inventory Number | DCM-3169 |
ABB - IRB 6600 2.55 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings, S4C+ Controls
View Available Automation (Die Cast)
Questions? Call (847) 360-9170 and mention DCM-3169.
Features & Accessories
- Compact Arm Design
- ABB foundry grade upgrade option
- Renowned ABB Parts and Service
Item Specifications for DCM-3169
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 385 pounds | 175 kg |
| Reach: | 100.3 inches | 2,550 mm |
| Axis 1 Robot Motion Range: | +/- 180 degrees | +/- 180 degrees |
| Axis 2 Robot Motion Range: | + 80 , - 65 degrees | + 80 , -65 degrees |
| Axis 3 Robot Motion Range: | + 60 , -180 degrees | + 60 , -180 degrees |
| Axis 4 Robot Motion Range: | +/- 300 degrees | +/- 300 degrees |
| Axis 5 Robot Motion Range: | +/- 120 degrees | +/- 120 degrees |
| Axis 6 Robot Motion Range: | +/- 300 degrees | +/- 300 degrees |
| Repeatability: | +/- 004 inch | +/- 0.1 mm |
| Control: | S4C+ | S4C+ |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Reis Trim Press Model: SEP 10-965 65 Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3165
- Sold – HPM Model: II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3166
- Sold – Rimrock Model: 410 410-60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3168
- Sold – Advance Products Model: SL 1200 HS (Helper Side Unit) 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-3170
Description
Used, ABB Model IRB 6600 2.55 Meter Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings For_Sale, Features Include: Compact Arm Design, ABB foundry grade upgrade option, Renowned ABB Parts and Service, S4C+ controls, second Hand, DCM-3169
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
