SOLD

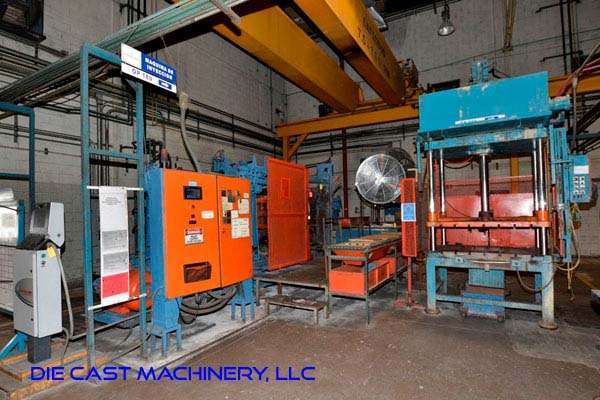

Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelII-600-A
Size600 Ton
Inventory NumberDCM-3133

HPM - II-600-A 600 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley SLC 5/03 with PanelView 550 HIM Display Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3133.

Features & Accessories

  • Factory Rebuilt in 1992 - Available as a cell with Advance Products Sprayer, Furnace, conveyor and Metal Mechanics Trim Press
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
  • Hydraulic Motorized Die Height Adjustment
  • Air Safety Ratchet
  • Hydraulic Bumper Plate Ejection System
  • Trabon Automatic Linkage Lubrication System
  • Visa-Trak True-Trak 2020 Machine Injection Process Monitoring and Analysis System

Item Specifications for DCM-3133

USMetric
Locking Force:600 tons545 tons
Tie Bar Diameter:6 inches736 mm x 736 mm
Clearance Between Tie Bars (H x V):29 x 29 inches736 mm x 736 mm
Die Thickness (minimum - maximum):14 - 36 inches355 mm - 914 mm
Die Stroke (minimum - maximum):12 - 18 inches304 mm - 457 mm
Moving Platen Size:48 x 48 inches1219 mm x 1219 mm
Shot Positions:Center & -9 inches below center0 & -228 mm below center
Shot Cylinder Stroke:19 - 23 inches482 mm - 584 mm
Shot Intensification Ration:3:13:1
Power:480/3/60480/3/60
Machine Size:7.1 x 26.2 feet2.2 x 8 m
Machine Weight:57,000 pounds21,274 kg

Video

Description

Used, HPM Model II-600-A 600 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Hydraulic Motorized Die Height Adjustment, Air Safety Ratchet, Hydraulic Bumper Plate Ejection System, Trabon Automatic Linkage Lubrication System, Visa-Trak True-Trak 2020 Machine Injection Process Monitoring and Analysis System, Allen Bradley SLC 5/03 with PanelView 550 HIM Display controls, second Hand, DCM-3133

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
