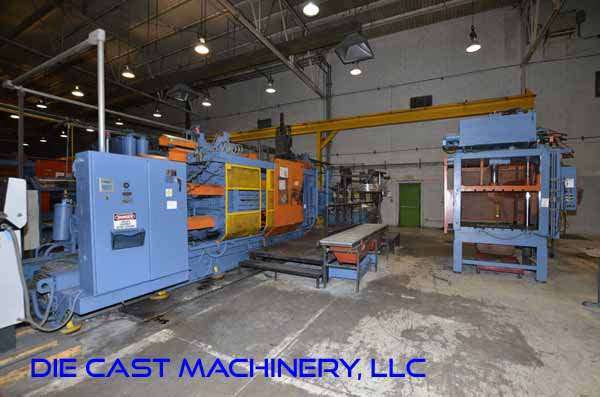

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 19| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-3127 |
HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Programmable Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3127.
Features & Accessories
- New in 1996 - Available as a cell with Furnace, Rimrock 410 Sprayer & 305 Ladler and 50 ton Trim Press
- Top Operator Side Automatic Tie Bar Puller System
- Hydraulic Powered Motorized Die Height Adjustment
- Hydraulic Bumper Plate Ejection System
- Dual Trabon Automatic Lubrication System
- Two Auxiliary Hydrauilic Side Core Circuits - One Core Circuit on Moving Platen - One on Fixed Platen
- Visa-Trak True-Trak 2020 Machine Injection Process Monitoring and Analysis System
Item Specifications for DCM-3127
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 38 x 38 inches | 965 x 965 mm |
| Die Thickness (minimum - maximum): | 16 - 40 inches | 406 - 1016 mm |
| Die Stroke (minimum - maximum): | 23 - 29 inches | 884 - 736 mm |
| Moving Platen Size: | 61 x 61 inches | 1549 x 1549 mm |
| Shot Positions (removable Insert): | Center, -9, -12 below center | Center, -228.6, -304.8 mm |
| Injection Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Ejector Stroke & Force: | 5 inches & 23.6 tons | 127 mm & 21.4 tons |
| Main Motor Power: | 60 HP | 44.76 kw |
| Machine Size: | 31.1 x 8.6 x 11.5 feet | 9.48 x 2.62 x 3.51 meters |
| Machine Weight: | 103,000 pounds | 46,818 kg |
Video
Description
Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Hydraulic Powered Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Dual Trabon Automatic Lubrication System, Two Auxiliary Hydrauilic Side Core Circuits - One Core Circuit on Moving Platen - One on Fixed Platen, Visa-Trak True-Trak 2020 Machine Injection Process Monitoring and Analysis System, Allen Bradley SLC 5/03 Solid State Programmable controls, second Hand, DCM-3127
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
