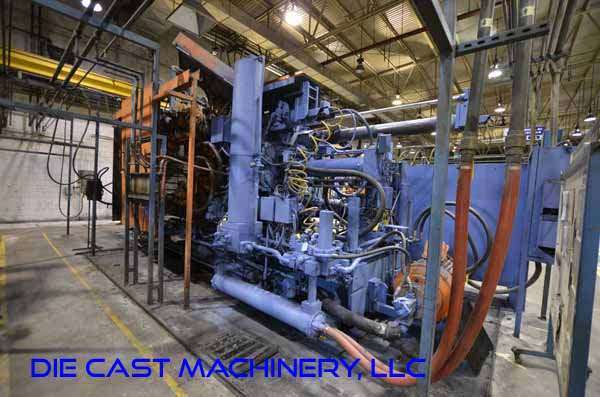

Used Prince Model: 940 CCA 950 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 940 CCA |
| Size | 950 Ton |
| Inventory Number | DCM-3125 |
Prince - 940 CCA 950 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen-Bradley PLC 5/30 Programmable Logic Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3125.
Features & Accessories
- Prince Automatic Tie Bar Pulling System - Top Two Tie Bars
- Prince Individual Die Bar Tonnage Adjustment System
- Auxiliary Piston Accumulator For High Flow Core Circuits - 3 Core Circuits on Moving Platen - 2 on Fixed Platen
- Prince Binary II Shot Control System with close coupled hydraulic Accumulators
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Allen-Bradley PLC 5/30 Programmable Logic Controller
Item Specifications for DCM-3125
| US | Metric | |
| Rated Tonage | 950 tons | 861 tons |
| Tie Bar Diameter | 8 inches | 203.2 mm |
| Clearance Between Tie bars | 40 inches | 1016 mm |
| Front Platen Size (T x W x H) | 14.75 x 64 x 74 inches | 374.7 x 1625.6 x 1879.6 mm |
| Moving Platen Size (T x W x H) | 13.75 x 64 x 64 inches | 349.3 x 1625.6 x 1625.6 mm |
| Die Thickness (min. - max.) | 22 - 42 inches | 558.8 - 1066.8 mm |
| Die Stroke | 24.5 inches | 622.3 mm |
| Ejection Stroke | 6 inches | 152.4 mm |
| Ejection Force | 21.5 tons | 19.5 tons |
| Motor Size | 100 hp | 74.6 kw |
| Machine Size (L x W x H) | 29.9 x 8.6 x 11 feet | 9.1 x 2.6 x 3.4 m |
| Machine Weight | 115,000 pounds | 42,922 kg |
Video
Description
Used, Prince Model 940 CCA 950 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Automatic Tie Bar Pulling System - Top Two Tie Bars, Prince Individual Die Bar Tonnage Adjustment System, Auxiliary Piston Accumulator For High Flow Core Circuits - 3 Core Circuits on Moving Platen - 2 on Fixed Platen, Prince Binary II Shot Control System with close coupled hydraulic Accumulators, Twin Cylinder Hydraulic Bumper Plate Ejection System, Allen-Bradley PLC 5/30 Programmable Logic Controller, Allen-Bradley PLC 5/30 Programmable Logic controls, second Hand, DCM-3125
