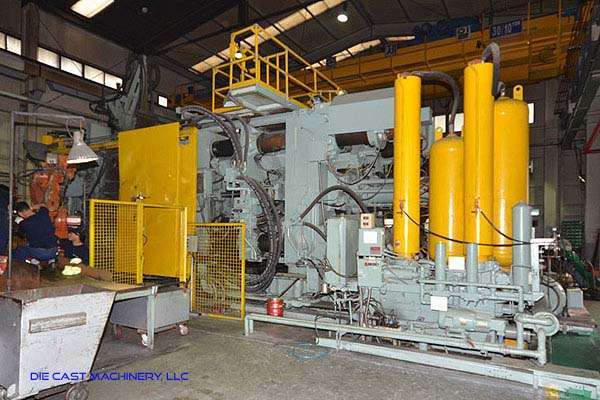

Used Prince Model: 3067 CCA 3000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model3067 CCA
Size3000 Tons
Inventory NumberDCM-3105

Prince - 3067 CCA 3000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Mitsubishi MELSEC A2 PLC Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3105.

Features & Accessories

  • Fully Automatic Dual Tie Bar Pullers of Top Two Tie Bars
  • Hydraulic Powered Automatic Die Height Adjustment System
  • Prince Quick Die Change System with Power Die Clamping and Automatic Ejector Bar Engagement System
  • Five (5) Auxiliary Hydraulic Side Core Circuits - three (3) on Moving Platen - two (2) on Fixed Platen
  • Real-Time Load Monitoring with Individual Tie Bar tonnage Adjustment System
  • Prince Binary II Shot with Low Impact Circuit All Piston Bottles Close-Coupled to Shot Cylinder Manifolds

Item Specifications for DCM-3105

USMetric
Rated Tonnage:3,450 Tons3136 Tons
Tie Bar Diameter:14 inches355 mm
Clearance between Tie Bars:67 inches1700 mm
Die Thickness (minimum - maximum):50 - 80 inches1270 - 2032 mm
Die Stroke (maximum):51 inches1295 mm
Moving Platen (horizontal x vertical x thick):108 x 108 x 24 inches2743 x 2743 x 609 mm
Injection Plunger Stroke (Maximum)48 inches1219 mm
Injection Cylinder & Injection rod diameter:10.5 & 7 inches266 & 177 mm
Ejector Platen Stroke & Force:10 inches & 85 Tons254 mm & 77 tons
Shot Positions:-12 to -24 inches below Centerline304 - 608 mm below Centerline
Pump Motors:200 & 75 HP150 & 55 KW
Machine Weight:465,000 pounds211,400 kg

Video

Description

Used, Prince Model 3067 CCA 3000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Fully Automatic Dual Tie Bar Pullers of Top Two Tie Bars, Hydraulic Powered Automatic Die Height Adjustment System, Prince Quick Die Change System with Power Die Clamping and Automatic Ejector Bar Engagement System, Five (5) Auxiliary Hydraulic Side Core Circuits - three (3) on Moving Platen - two (2) on Fixed Platen, Real-Time Load Monitoring with Individual Tie Bar tonnage Adjustment System, Prince Binary II Shot with Low Impact Circuit All Piston Bottles Close-Coupled to Shot Cylinder Manifolds, Mitsubishi MELSEC A2 PLC controls, second Hand, DCM-3105

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
