Used Ex-Cell-O B&T Model: DC 850 A 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Ex-Cell-O B&T |
| Model | DC 850 A |
| Size | 850 Ton |
| Inventory Number | DCM-3093 |
Ex-Cell-O B&T - DC 850 A 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3093.
Features & Accessories
- New 1977 - Serial Number 7731

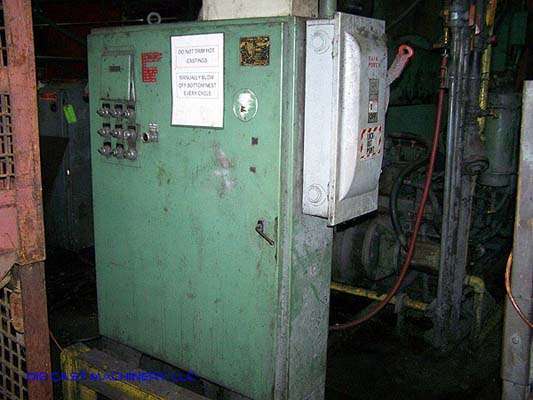

- Allen Bradley Model SLC 5/03 Solid State Controls
- Electric Motorized Die Height Adjustment System
- Twin Cylinder Hydraulic Bumper Plate Ejection System with Adjustable Stroke
- Two Core Circuits on Moving Platen and One Core Circuit on Front Platen
- Shot Positions at Center, - 6 and -15 inches
- Inspect under-power and in production
Item Specifications for DCM-3093
| US | Metric | |
| Factory Rated Tonnage: | 850 | 1454 |
| Tie Bar Diameter: | 7 inches | 177.8 mm |
| Clearance Between Tie bars: | 36.5 inches | 927.1 mm |
| Front Platen Size (T x W x H): | 14 x 60 x 69 inches | 355 x 1524 x 1752 mm |
| Moving Platen Size (T x W x H): | 14 x 60 x 60 inches | 355 x 1524 x 1524 mm |
| Die Thickness (min. - max.) | 18 - 32 inches | 457.2 - 812.8 mm |
| Die Stroke (adjustable): | 24 - 36 inches | 609.6 -914.4 mm |
| Injection Stroke: | 28 - 33 inches | 711.2 - 838.2 |
| Shot Cylinder Diameter: | 6.5 inches | 165.1 mm |
| Motor Size | 125 hp | 93.25 kw |
| Machine Size (L x W x H) | 28.7 x 8.5 x 10 feet | 8.74 x 2.59 x 3.04 m |
| Machine Weight | 95,000 pounds | 43.2 MT |
Description
Used, Ex-Cell-O B&T Model DC 850 A 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley Model SLC 5/03 Solid State Controls, Electric Motorized Die Height Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection System with Adjustable Stroke, Two Core Circuits on Moving Platen and One Core Circuit on Front Platen, Shot Positions at Center, - 6 and -15 inches, Inspect under-power and in production, Allen Bradley SLC 5/03 controls, second Hand, DCM-3093
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
