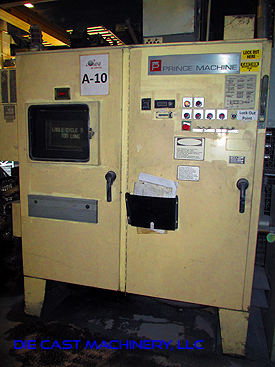

Used Prince Model: 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1246 CCA |
| Size | 1200 Ton |
| Inventory Number | DCM-3065 |
Prince - 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3065.
Features & Accessories
- Serial Number D-97031 - New in 1997
- Prince Binary II shot Control System
- Fully Automatic Top Helper Side Automatic Tie Bar Pulling System
- Individual Tie Bar Adjustment System
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Axillary Core Circuits
- Prince Close Coupled Shot System with All Piston Bottles and Inserted Shot Position Adjustment
Item Specifications for DCM-3065
| US | Metric | |
| Rated Tonnage | 1200 tons | 1090 metric tons |
| Tie Bar Diameter | 9.5 inches | 241.3 mm |
| Clearance Between Tie bars | 46.5 x 46.5 inches | 1181.1 x 1181.1 mm |
| Front Platen Size (T x W x H) | 17.25 x 75 x 85 inches | 438.15 x 1905 x 2159 mm |
| Moving Platen Size (T x W x H) | 15.75 x 75 x 75 inches | 400.05 x 1905 x 1905 mm |
| Die Thickness (min. - max.) | 24 inches - 44 inches | 609.6 mm - 1117.6 mm |
| Die Stroke | 30 inches | 762 mm |
| Ejection Stroke | 6 inches | 152.4 mm |
| Ejection Force | 30 tons | 27.27 metric tons |
| Motor Size | 125 hp | 93.25 kw |
| Machine Size (L x W x H) | 36 x 9 x 13 feet | 10.82 x 2.59 x 3.81 m |
| Machine Weight | 170,000 pounds | 77,272 kg |
Video
Description
Used, Prince Model 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Binary II shot Control System, Fully Automatic Top Helper Side Automatic Tie Bar Pulling System, Individual Tie Bar Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection System, Axillary Core Circuits, Prince Close Coupled Shot System with All Piston Bottles and Inserted Shot Position Adjustment, Allen Bradley PLC 5/30 controls, second Hand, DCM-3065
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
