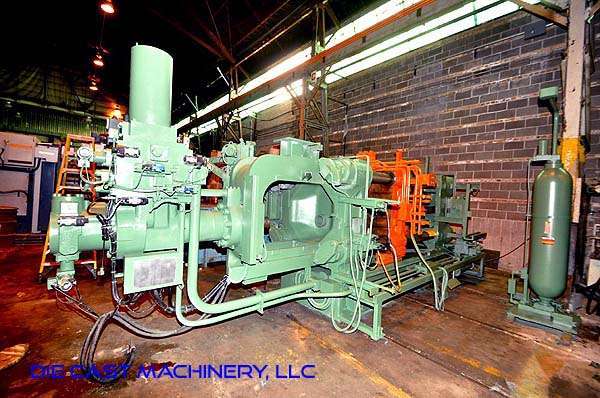

Used Toshiba Model: DC-650-CLT 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 15| Status | Sold |
|---|---|
| Manufacturer | Toshiba |
| Model | DC-650-CLT |
| Size | 650 Metric Ton |
| Inventory Number | DCM-3038 |
Toshiba - DC-650-CLT 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba TOS-Cast Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3038.
Features & Accessories
- Toshiba TOS Cast Machine Control System
- Equipped with Toshiba Automatic Ladle Factory Installed and Prex Linear High Speed Die Sprayer
- Fully Automatic Top Operator Side Tie Bar Pulling System
- Hydraulic Bumper Plate Ejection System
- Electric Powered Motorized Die Height Adjustment System
- Three Axillary Hydraulic Core Circuits - Two on Moving Platen - One on Fixed Platen
Item Specifications for DCM-3038
| US | Metric | |
| Locking Force | 720 tons | 650 tons |
| Platen Size | 47.25 x 47.25 inches | 1200 x 1200 mm |
| Tie Bar Diameter | 6.3 inches | 160 mm |
| Clearance Between Tie Bars (V x H) | 33.46 inches x 33.46 inches | 850 mm x 850 mm |
| Die Thickness (max - min) | 35.43 - 13.78 inches | 900 - 350 mm |
| Die Stroke | 25.98 inches | 660 mm |
| Injection Stroke | 26.38 inches | 670 mm |
| Injection Positions | -6.89 inches | -175 mm |
| Ejection Stroke & Ejection Force | 4.9 inches & 33 tons | 125 mm & 30 mt |
| Main Motor | 50 hp | 37 kw |
| Machine Weight | 66,200 pounds | 30,000 kg |
| Machine Dimensions (L x W x H) | 26 x 8.5 x 10.7 feet | 7.92 x 2.6 x 3.2 meters |
Video
Description
Used, Toshiba Model DC-650-CLT 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Toshiba TOS Cast Machine Control System, Equipped with Toshiba Automatic Ladle Factory Installed and Prex Linear High Speed Die Sprayer, Fully Automatic Top Operator Side Tie Bar Pulling System, Hydraulic Bumper Plate Ejection System, Electric Powered Motorized Die Height Adjustment System, Three Axillary Hydraulic Core Circuits - Two on Moving Platen - One on Fixed Platen, Toshiba TOS-Cast controls, second Hand, DCM-3038
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
