SOLD

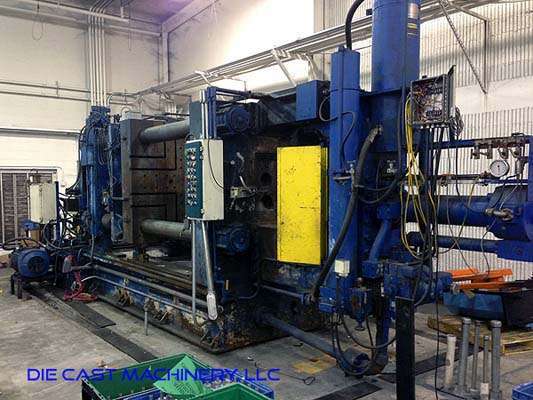

Used Prince Model: 629 CCA 600 Ton

StatusSold
ManufacturerPrince
Model629 CCA
Size600 Ton
Inventory NumberDCM-3035

Prince - 629 CCA 600 Ton , Allen Bradley PLC 2 Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3035.

Features & Accessories

  • C-Frame shot end with Hydraulic adjustment, with Prince Binary I Shot Control System and multiplier intensification system with Piston Bottle hydraulic supply
  • Hydrauilc Bumper Plate Ejection System
  • Automatic (powered) operator and Helper side safety doors
  • Automatic Lubricaiton System Tie Bar Load Monitoring
  • Central hydraulic Powered Motorized Die Height Adjustment
  • Air Safety Ratchet Device

Item Specifications for DCM-3035

USMetric
Rated Tonage:600 / 700 tons544 / 635 tons
Tie Bar Diameter:6.75 inches171.45 mm
Clearance Between Tie Bars:29.25 x 29.25 inches742.95 x 742.95 mm
Front Platen Size (T x W x H):10.75 x 51 x 58 inches273.05 x 1295.4 x 1473.2 mm
Moving Platen Size (T x W x H):9.75 x 51 x 51 inches247.65 x 1295.4 x 1295.4 mm
Die Thickness (min. - max.):16 - 36 inches406 - 914 mm
Die Stroke:17 inches431.8 mm
Ejection Stroke:5 inches127 mm
Ejection Force:20 tons18.14 tons
Motor Size:60 hp44.76 Kw
Machine Size (L x W x H):26 feet x 7 feet 6 inches x 9 feet 8 inches7.92 x 2.29 x 2.95 m
Machine Weight:64,000 pounds29,029 kg

Description

Used, Prince Model 629 CCA 600 Ton For_Sale, Features Include: C-Frame shot end with Hydraulic adjustment, with Prince Binary I Shot Control System and multiplier intensification system with Piston Bottle hydraulic supply, Hydrauilc Bumper Plate Ejection System, Automatic (powered) operator and Helper side safety doors, Automatic Lubricaiton System Tie Bar Load Monitoring, Central hydraulic Powered Motorized Die Height Adjustment, Air Safety Ratchet Device, Allen Bradley PLC 2 controls, second Hand, DCM-3035

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
