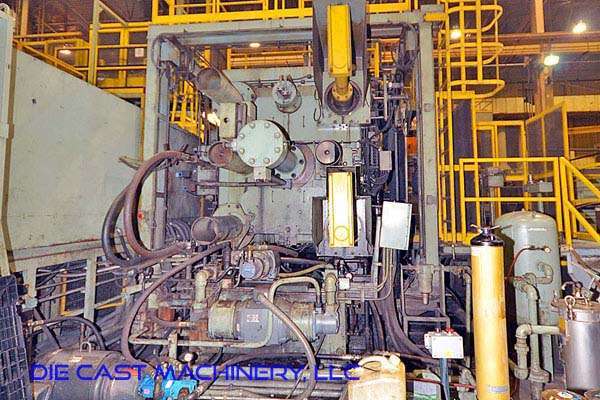

Used Toshiba Model: DC-1650-CS 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerToshiba
ModelDC-1650-CS
Size1650 Metric Ton
Inventory NumberDCM-3020

Toshiba - DC-1650-CS 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba PLC Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3020.

Features & Accessories

  • Manufactured New in 1986
  • Dual Fully Automated Tie Bar Pulling on Top and Bottom Operator Side Tie Bars
  • Automatic Lubrication System with Monitoring System
  • Two Speed Hydraulic Motorized Die Height via central Bull Gear
  • Toshiba PLC Controls
  • C-Frame Shot End with Close Coupled Piston Accumulators and Shot Intensifier
  • Hydraulic Bumper Plate Ejection System

Item Specifications for DCM-3020

USMetric
Clamping Force:1,815 Tons1650 Tons
Clearance Between Tie Bars: (horizontal x vertical)51 x 59 inches1300 x 1500 mm
Tie Bar Diameter:11 inches280 mm
Platen Dimensions:81.1 x 89 inches2060 x 2260 mm
Die Thickness (minimum - maximum):27.55- 66.9 inches700 - 1700 mm
Die Stroke:39.38 inches1000 mm
Injection Force:93 to 168 tons85 to 153 tons
Injection Stroke:47.25 inches1200 mm
Shot Positions:13.78 inches below Center350 mm below Center
Ejector Stroke:.78 - 7.8 inches20 - 200 mm
Machine Size:43 x 13 x 14 feet13.11 x 3.96 x 4.27 meters
Machine Weight:308,000 lbs139,706 kg

Video

Documents

Description

Used, Toshiba Model DC-1650-CS 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Dual Fully Automated Tie Bar Pulling on Top and Bottom Operator Side Tie Bars, Automatic Lubrication System with Monitoring System, Two Speed Hydraulic Motorized Die Height via central Bull Gear, Toshiba PLC Controls, C-Frame Shot End with Close Coupled Piston Accumulators and Shot Intensifier, Hydraulic Bumper Plate Ejection System, Toshiba PLC controls, second Hand, DCM-3020

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
