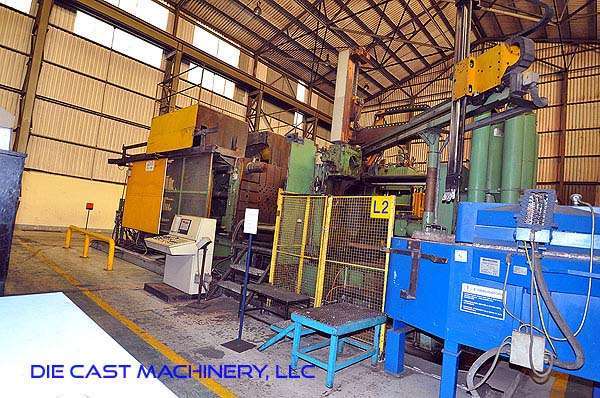

Used Ardi Model: OL-A-1600 1662 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 16| Status | Sold |
|---|---|
| Manufacturer | Ardi |
| Model | OL-A-1600 |
| Size | 1662 Metric Ton |
| Inventory Number | DCM-2991 |
Ardi - OL-A-1600 1662 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Siemens Simatic S-7 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2991.
Features & Accessories
- Automatic Ladle
- Reciprocating Sprayer
- Robot
- 50 ton Hydraulic Trim Press
- Furnace
Item Specifications for DCM-2991
| US | Metric | |
| Locking Force: | 1832 tons | 1662 tons |
| Tie Bar Diameter: | 9.45 inches | 240 mm |
| Clearance Between Tie Bars: | 45.6 x 45.6 inches | 1160 x 1160 mm |
| Die Thickness (Minimum to Maximum): | 17.7 - 47.2 inches | 450 - 1200 mm |
| Moving Platen Stroke: | 48 inches | 1220 mm |
| Platen Dimensions: | 71.6 x 72.4 inches | 1820 x 1840 mm |
| Maximum Injection Force: | 131.5 tons | 119.3 tons |
| Ejection Force: | 61.8 tons | 56 tons |
| Motor Rating: | two - 49.6 HP | two - 37 kW |
| Machine Size: | 41.6 x 15 x 14.4 feet | 12.7 x 4.6 x 4.4 meters |
| Machine Weight: | 220,000 pounds | 99,790 KG |
Video
Documents
- DCM_2991_Ardi 1600 Platen DrawingPDF · 297 KB
Description
Used, Ardi Model OL-A-1600 1662 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Automatic Ladle, Reciprocating Sprayer, Robot, 50 ton Hydraulic Trim Press, Furnace, Siemens Simatic S-7 controls, second Hand, DCM-2991
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
