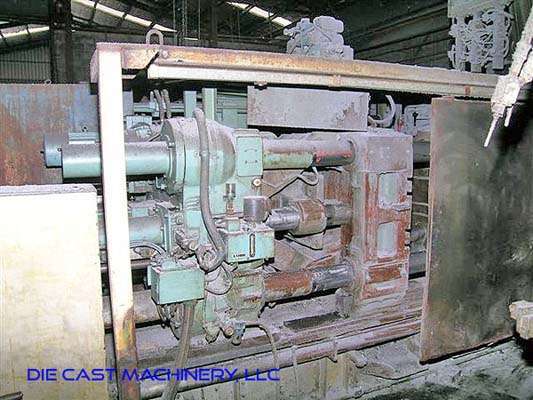

Used Toshiba Model: DC 500 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerToshiba
ModelDC 500
Size500 Metric Ton
Inventory NumberDCM-2990

Toshiba - DC 500 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Relay Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2990.

Features & Accessories

  • New in 1993
  • Electric Motorized Die Height Adjustment
  • Factory Installed Toshiba Ladle, Die Sprayer, Floor Mounted Extractor
  • Hydraulic Ejection

Item Specifications for DCM-2990

USMetric
Rated Tonnage:550 tons500 tons
Tie Bar Diameter:5.9 inches150 mm
Clearance between Tie Bars:25.59 x 25.59 inches650 x 650 mm
Die Thickness (minimum - maximum):13.8 - 33.5 inches350 - 850 mm
Die Stroke:21.7 inches550 mm
Ejection Force:26.4 tons24 tons
Main Motors:55 HP40.5 kW
Injection Stroke:22.8 inches580 mm
Injection Force (with use of multiplier):54 - 21 tons49 - 19 tons
Shot Position:-6.9 inches-175 mm
Machine Size (L x W x H):24.28 x 7.22 x 9.19 feet7.4 x 2.2 x 2.8 meters
Machine Weight:48,600 pounds22,000 kg

Description

Used, Toshiba Model DC 500 500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Factory Installed Toshiba Ladle, Die Sprayer, Floor Mounted Extractor, Hydraulic Ejection, Relay controls, second Hand, DCM-2990
