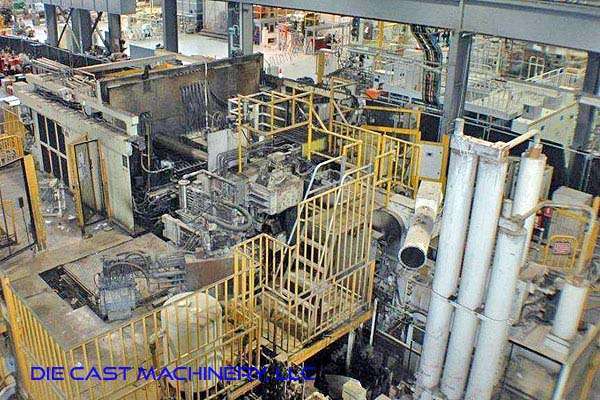

Used Toshiba Model: DC-2500 CST 2500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Toshiba |
| Model | DC-2500 CST |
| Size | 2500 Metric Ton |
| Inventory Number | DCM-2966 |
Toshiba - DC-2500 CST 2500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba TOScast System Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2966.
Features & Accessories
- Estimated 600,000 Shots
- Toshiba TOSCAST Injection Control System
- Nichbei Quick Die Change Die Clamping System - two (2) sets
- Toshiba DAL Automatic Ladling System & Die Lube Spray System - Factory Installed
- Dual Automatic Tie Bar Pullers of Upper & Lower Operator Side Tie Bars
- Fanuc model R2000i/165F 6 Axis Foundry Rated Robot Extractor with Quench Tank System
- Five (5) Core Circuits total - 3 on moving platen, 2 on stationary platen plus six (6) auxiliary hydraulic Squeeze Pin circuits
Item Specifications for DCM-2966
| US | Metric | |
| Clamping Force: | 2755 tons | 2500 tons |
| Distance Between Tie Bars: | 62.99 x 66.93 inches | 1600 x 1700 mm |
| Die Thickness (min - max) : | 49.21 to 66.93 | 1250 to 1700 mm |
| Platen Dimensions (horizontal x vertical): | 98.43 x 94.49 inches | 2500 x 2400 mm |
| Die Stroke: | 53.15 inches | 1350 mm |
| Tie Bar Diameter: | 12.99 inches | 330 mm |
| Die Height Adjustment: | 17.72 inches | 450 mm |
| Injection (shot) Position: | -9.84 inches | -250 mm |
| Injection (shot) stroke: | 55.11 inches | 1400 mm |
| Maximum Injection (shot) Speed: | 157 inches/sec | 4.0 m/sec |
| Ejector Force: | 88 tons | 80 tons |
| Hydraulic Ejection Stroke (min - max): | .196 - 9.84 inches | 5 - 250 mm |
Video
Documents
- DCM_2966_Toshiba_2500PDF · 1.6 MB
Description
Used, Toshiba Model DC-2500 CST 2500 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Toshiba TOSCAST Injection Control System, Nichbei Quick Die Change Die Clamping System - two (2) sets, Toshiba DAL Automatic Ladling System & Die Lube Spray System - Factory Installed, Dual Automatic Tie Bar Pullers of Upper & Lower Operator Side Tie Bars, Fanuc model R2000i/165F 6 Axis Foundry Rated Robot Extractor with Quench Tank System, Five (5) Core Circuits total - 3 on moving platen, 2 on stationary platen plus six (6) auxiliary hydraulic Squeeze Pin circuits, Toshiba TOScast System controls, second Hand, DCM-2966
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
