SOLD

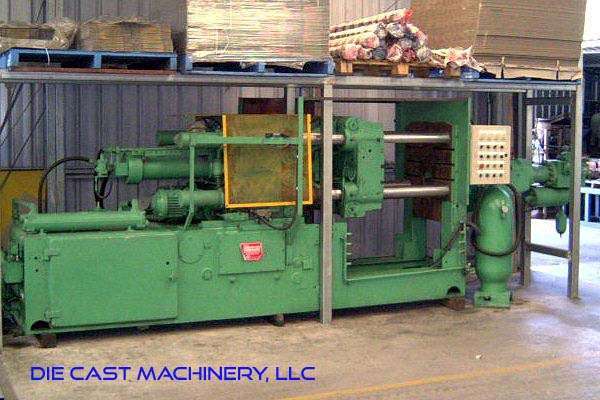

Used Weingarten Model: GDK200 2500 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerWeingarten
ModelGDK200
Size2500 kN
Inventory NumberDCM-2918

Weingarten - GDK200 2500 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2918.

Item Specifications for DCM-2918

USMetric
Clamping Force (2500 kN):275 tons250 tons
Platen Size (horizontal x vertical):29 x 29 inches755 x 755 mm
Distance Between Tie Bars (horizontal x vertical):19 x 19 inches490 x 490 mm
Tie Bar Diameter:3.5 inches90 mm
Closing Stroke (maximum):17.7 inches450 mm
Die Height (maximum - minimum):21.6 - 7.1 inches550 - 180 mm
Injection Force (maximum):30.3 tons27.5 tons
Injection Positions:0, -3.2, and -6.30, -80, and -160 mm
Machine Weight:21,935 pounds9,950 kg
Machine Dimensions (L x W x H):236 x 98 x 79 inches6000 x 2500 x 2000

Description

Used, Weingarten Model GDK200 2500 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include:, controls, second Hand, DCM-2918

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
