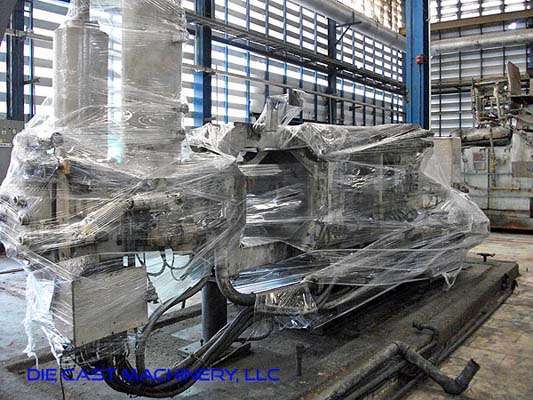

Used Toshiba Model: DC250J-S 250 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerToshiba
ModelDC250J-S
Size250 Ton
Inventory NumberDCM-2907

Toshiba - DC250J-S 250 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Toshiba PLC Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2907.

Features & Accessories

  • Electric Motorized Die Height Adjustment
  • Core Circuits
  • Hydraulic Ejection
  • Toshiba PLC Controls

Item Specifications for DCM-2907

USMetric
Locking Force:275 tons250 tons
Platen Size:33.4 x 33.4 inches850 x 850 mm
Clearance Between Tie Bars:22.8 x 22.8 inches580 x 580 mm
Die Stroke (max - min):14 inches360 mm
Die Height (max - min):11.8 - 27.5 inches300 - 700 mm
Injection Force:30 tons27.5 tons
Shot Positions:-2.9 inches-125 mm
Ejection Stroke:.79 - 3.1 inches20 - 80 mm
Ejection Force:13.9 tons124 KN
Machine Weight16.5 tons15 tons
:Machine Size:17.8 x 5.5 x 8.6 feet5.4 x 1.7 x 2.6 meters

Description

Used, Toshiba Model DC250J-S 250 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Core Circuits, Hydraulic Ejection, Toshiba PLC Controls, Toshiba PLC controls, second Hand, DCM-2907

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
