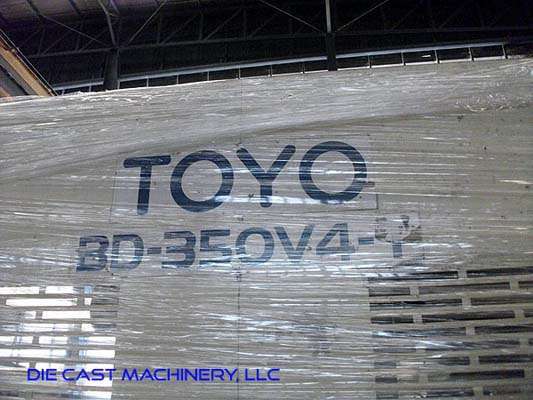

Used Toyo Machinery Model: BD-350V4-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Toyo Machinery |
| Model | BD-350V4-T |
| Size | 350 Metric Ton |
| Inventory Number | DCM-2904 |
Toyo Machinery - BD-350V4-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toyo PLCS-10 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2904.
Features & Accessories
- New in 2005
- Electric Motorized Die Height Adjustment
- Top Operator Side Automatic Tie Bar Puller
- Toyo PLCS-10 Controls
Item Specifications for DCM-2904
| US | Metric | |
| Locking Force: | 385 tons | 350 tons |
| Platen Size: | 36.8 x 39.6 inches | 935 x 1008 mm |
| Clearance Between Tie Bars (V x H): | 25.6 x 25.6 inches | 652 x 652 mm |
| Die Stroke (max - min): | 16.5 - 11.8 inches | 420 - 300 mm |
| Die Height (max - min): | 11.8 - 27.5 inches | 300 - 700 mm |
| Injection Force: | 37.6 tons | 34 tons |
| Shot Positions: | -5.9 inches | -150 mm |
| Ejection Stroke: | 0 - 3.9 inches | 0 - 100 mm |
| Ejection Force: | 20.5 tons | 190 KN |
| Number of Core Circuits: | 3 | 3 |
| Machine Weight: | 16.5 tons | 15 tons |
| Machine Size: | 21.2 x 6.2 x 13.9 feet | 6.47 x 1.99 x 2.8 meters |
Description
Used, Toyo Machinery Model BD-350V4-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Top Operator Side Automatic Tie Bar Puller, Toyo PLCS-10 Controls, Toyo PLCS-10 controls, second Hand, DCM-2904
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
