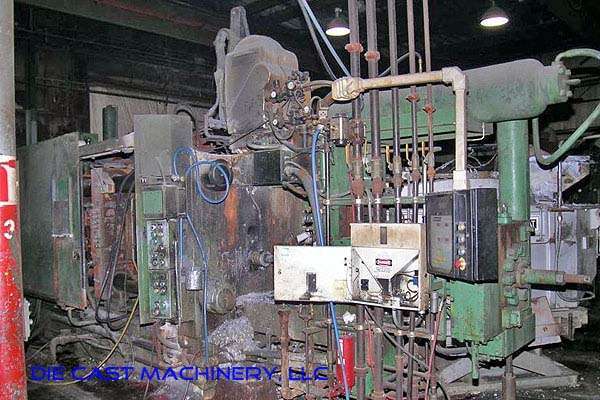

Used HPM Model: II-800-A 800 Ton

StatusSold
ManufacturerHPM
ModelII-800-A
Size800 Ton
Inventory NumberDCM-2883

HPM - II-800-A 800 Ton , Allen Bradley SLC 5/03 Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2883.

Features & Accessories

  • Factory Rebuilt by HPM in 2000
  • Hydraulic Bumper Plate Ejection System
  • Air Safety Ratchet Device
  • Two (2) hydraulic Core Circuits
  • Automatic Motorized Die Height Adjustment
  • Allen Bradley SLC 5/03 Controls with Panel View 550 Display Interface
  • Factory Rebuilt and updated in 2000 by HPM

Item Specifications for DCM-2883

USMetric
Locking Force:800 tons725 tons
Tie Bar Diameter:7 inches177 mm
Clearance Between Tie Bars:34 x 34 inches863 x 863 mm
Die Thickness (minimum - maximum):14 - 38 inches355 - 965 mm
Die Stroke (minimum - maximum):14 - 24 inches355 - 609 mm
Moving Platen Size (H x V x T):55 x 55 x 11 inches1397 x 1397 x 279 mm
Shot Positions:Center and -9 below centerCenter and -228.6 mm below center
Cylinder Stroke:20 - 26 inches508 - 660 mm
Power:60 HP44.76 hp
Machine Size:8.3 x 27.4 feet2.53 x 8.35 meters
Machine Weight:79,000 pounds35,833 kg

Description

Used, HPM Model II-800-A 800 Ton For_Sale, Features Include: Hydraulic Bumper Plate Ejection System, Air Safety Ratchet Device, Two (2) hydraulic Core Circuits, Automatic Motorized Die Height Adjustment, Allen Bradley SLC 5/03 Controls with Panel View 550 Display Interface, Factory Rebuilt and updated in 2000 by HPM, Allen Bradley SLC 5/03 controls, second Hand, DCM-2883

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
