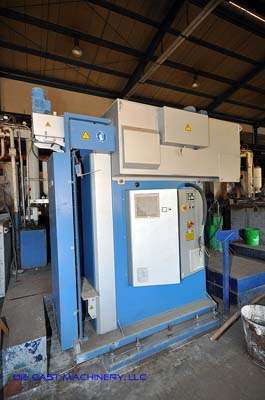

Used Meltec Model: IPC 350 24 KW Electrically Heated Magnesium Ingot Preheater and Furnace Charging Unit
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Meltec |
| Model | IPC 350 |
| Size | 24 KW |
| Inventory Number | DCM-2865 |
Meltec - IPC 350 24 KW Electrically Heated Magnesium Ingot Preheater and Furnace Charging Unit, Meltec Controls
View Available Melting Holding Furnaces
Questions? Call (847) 360-9170 and mention DCM-2865.
Features & Accessories
- Compact Design Saves Space in Die Casting Cell
- Holds 15 - 20 Ingots (depends on the size of the ingot)
- Accepts a Wide Range of Ingot Sizes
- Simple Operation via the Machine HMI
- Interfaces with Casting Cell to Supply Ingots when Needed
Item Specifications for DCM-2865
| US | Metric | |
| Energy Supply for Heating: | Electric | Electric |
| Total Heating Power: | 36 KW | 36 KW |
| Rated Temperature: | 752 Fahrenheit | 400 Celsius |
| Ingot Length (range): | 22.04 - 26.96 inches | 560 - 685 mm |
| Ingot Width (range): | 3.34 - 6.49 inches | 90 - 165 mm |
| Ingot Height (range): | 2.75 - 4.13 inches | 70 - 105 mm |
| Capacity of Ingots (depends on size): | 15 -20 | 15 -20 |
| Rated Throughput: | 330 pounds/hour @ 392 Fahrenheit | 150 KG/Hour @ 150 Celsius |
| Power Requirements: | 380 - 480 Volts/3 phase/50-60 | 380 - 480 Volts/3 phase/50-60 cycle |
| Machine Size (length x width x height): | 96.5 x 52 x 96.5 inches | 2450 x 1300 x 2450 mm |
| Machine Weight: | 5,500 pounds | 2,500 KG |
Description
Used, Meltec Model IPC 350 24 KW Electrically Heated Magnesium Ingot Preheater and Furnace Charging Unit For_Sale, Features Include: Compact Design Saves Space in Die Casting Cell, Holds 15 - 20 Ingots (depends on the size of the ingot), Accepts a Wide Range of Ingot Sizes, Simple Operation via the Machine HMI, Interfaces with Casting Cell to Supply Ingots when Needed, Meltec controls, second Hand, DCM-2865
