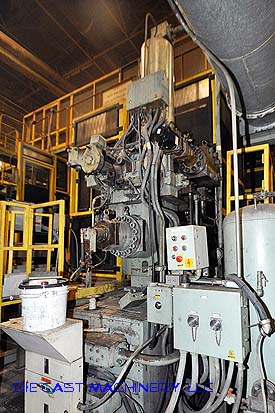

Used Ube Model: UB 1650 G 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerUbe
ModelUB 1650 G
Size1650 Metric Ton
Inventory NumberDCM-2860

Ube - UB 1650 G 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2860.

Features & Accessories

  • Includes Trimming Cell, Automation and upgrades
  • Central Electric Motorized Die Height Adjustment
  • Five Core Circuits - four on moving platen, one on fixed platen
  • Fanuc Auto-Ladle, Ube Die Sprayer, Fanuc S 430i F robot for parts extractor, Fanuc Trimming Robot
  • Ube Power Die Carrier - Moving and Stationary Platens
  • Ube Automated Shuttle Bed Trim Press
  • Upgrades to machine - Linkage, Controls, Injection Unit

Item Specifications for DCM-2860

USMetric
Locking Force:1815 tons1650 tons
Tie Bar Diameter:9.84 inches250 mm
Tie Bar Clearance (vertical x horizontal):56 x 51 inches1500 x 1300 mm
Die Thickness (minimum - maximum):31.5 - 66.93 inches800 - 1700 mm
Die Stroke (minimum - maximum):43 inches1100 mm
Moving Platen Size:88.98 x 81 inches2260 x 2060 mm
Shot Position:-13.78 inches-350 mm
Shot Injection Stroke:44 inches1120 mm
Ejection Force88 tons80 tons
Power:AC 480 V, 60 HzAC 480 V, 60 Hz
Machine Size (includes automation):52.3 x 43.8 x 23.71 feet15.97 x 13.35 x 7.23 meters
Machine Weight:264,554 pounds120,000 KG

Documents

Description

Used, Ube Model UB 1650 G 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Central Electric Motorized Die Height Adjustment, Five Core Circuits - four on moving platen, one on fixed platen, Fanuc Auto-Ladle, Ube Die Sprayer, Fanuc S 430i F robot for parts extractor, Fanuc Trimming Robot, Ube Power Die Carrier - Moving and Stationary Platens, Ube Automated Shuttle Bed Trim Press, Upgrades to machine - Linkage, Controls, Injection Unit, controls, second Hand, DCM-2860

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
