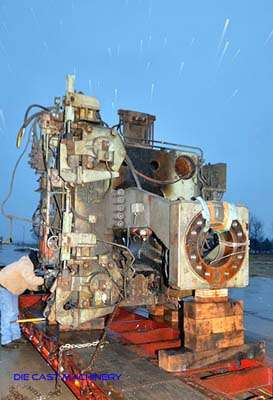

Used Ube Model: UB 1650 G 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Ube |
| Model | UB 1650 G |
| Size | 1650 Metric Ton |
| Inventory Number | DCM-2859 |
Ube - UB 1650 G 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2859.
Features & Accessories
- Central Electric Motorized Die Height Adjustment
- Five Core Circuits - four on moving platen, one on fixed platen
- Fanuc Auto-Ladle, Ube Die Sprayer, Fanuc S 430i F robot for parts extractor, Fanuc Trimming Robot
- Ube Power Die Carrier - Moving and Stationary Platens
- Ube Automated Shuttle Bed Trim Press
- Upgrades to machine - Linkage, Controls, Injection Unit
Item Specifications for DCM-2859
| US | Metric | |
| Locking Force: | 1815 tons | 1650 tons |
| Tie Bar Diameter: | 9.84 inches | 250 mm |
| Tie Bar Clearance (vertical x horizontal): | 56 x 51 inches | 1500 x 1300 mm |
| Die Thickness (minimum - maximum): | 31.5 - 66.93 inches | 800 - 1700 mm |
| Die Stroke (minimum - maximum): | 43 inches | 1100 mm |
| Moving Platen Size: | 88.98 x 81 inches | 2260 x 2060 mm |
| Shot Position: | -13.78 inches | -350 mm |
| Shot Injection Stroke: | 44 inches | 1120 mm |
| Ejection Force | 88 tons | 80 tons |
| Power: | AC 480 V, 60 Hz | AC 480 V, 60 Hz |
| Machine Size (includes automation): | 52.3 x 43.8 x 23.71 feet | 15.97 x 13.35 x 7.23 meters |
| Machine Weight: | 264,554 pounds | 120,000 KG |
Documents
- DCM_2859_Ube 1650 Platen DrawingPDF · 436 KB
Description
Used, Ube Model UB 1650 G 1650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Central Electric Motorized Die Height Adjustment, Five Core Circuits - four on moving platen, one on fixed platen, Fanuc Auto-Ladle, Ube Die Sprayer, Fanuc S 430i F robot for parts extractor, Fanuc Trimming Robot, Ube Power Die Carrier - Moving and Stationary Platens, Ube Automated Shuttle Bed Trim Press, Upgrades to machine - Linkage, Controls, Injection Unit, controls, second Hand, DCM-2859
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
