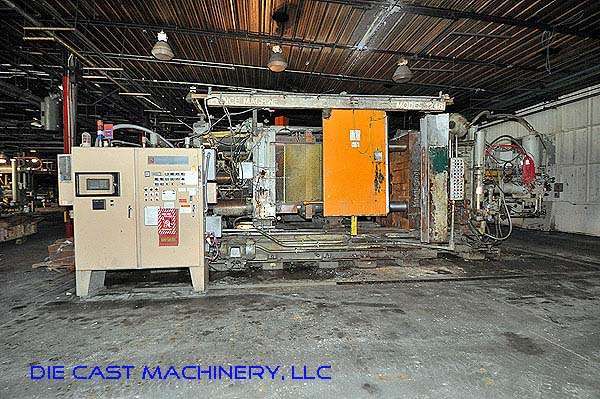

Used Prince Model: 1242 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1242 CCA |
| Size | 1200 Ton |
| Inventory Number | DCM-2842 |
Prince - 1242 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2842.
Features & Accessories
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Hydraulic Motorized Die Height Adjustment with Individual Tie Bar Adjustment
- Adjustable Shot Stroke
- Prince Binary Shot Control System
- Top Operator Side Automatic Tie Bar Puller
- Two Axillary Core Circuits on Moving Platen
Item Specifications for DCM-2842
| US | Metric | |
| Rated Tonnage | 1200 tons | 1088 tons |
| Tie Bar Diameter | 9.5 inches | 241.3 mm |
| Clearance Between Tie bars | 42.5 x 42.5 inches | 1079.5 x 1079.5 mm |
| Front Platen Size (T x W x H) | 17.75 x 70 x 80 inches | 450.9 x 1778 x 2032 mm |
| Moving Platen Size (T x W x H) | 15.75 x 70 x 70 inches | 400 x 1778 x 1778 mm |
| Die Thickness (min. - max.) | 24 x 44 inches | 609.6 - 1117.6 mm |
| Die Stroke | 27 inches | 685.8 mm |
| Shot Positions (insert in platen) | Center & -12 inches | Center & -305 mm |
| Machine Control | Allen Bradley PLC 5 | Allen Bradley PLC 5 |
| Motor Size | 100 hp | 74.6 kw |
| Machine Size (L x W x H) | 35.6 x 8.6 x 12.6 feet | 10.9 x 2.6 x 3.8 m |
| Machine Weight | 155,000 pounds | 70,306 kg |
Description
Used, Prince Model 1242 CCA 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Twin Cylinder Hydraulic Bumper Plate Ejection, Hydraulic Motorized Die Height Adjustment with Individual Tie Bar Adjustment, Adjustable Shot Stroke, Prince Binary Shot Control System, Top Operator Side Automatic Tie Bar Puller, Two Axillary Core Circuits on Moving Platen, Allen Bradley PLC 5 controls, second Hand, DCM-2842
