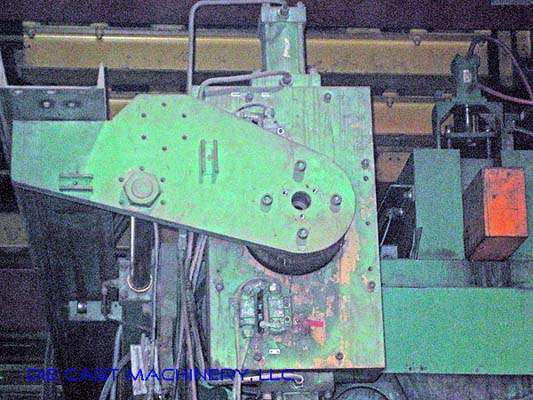

Used Prince Model: 1656 CCA 160 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1656 CCA |
| Size | 160 Ton |
| Inventory Number | DCM-2793 |
Prince - 1656 CCA 160 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/03 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2793.
Features & Accessories
- Factory Rebuilt by HPM November 1997
- Top Helper Side Automatic Tie Bar Puller
- Rebuilt by HPM with a II-1600-A Shot System Installed During Rebuild
- Allen Bradley PLC 5/03 Solid State Controls with Panel View Display
Item Specifications for DCM-2793
| US | Metric | |
| Rated Tonnage | 1600 tons | 1454 tons |
| Tie Bar Diameter | 11 inches | 279.4 mm |
| Clearance Between Tie bars | 56 inches | 1422 mm |
| Front Platen Size (T x W x H) | 21 x 88 x 96 inches | 533 x 2235 x 2438 mm |
| Moving Platen Size (T x W x H) | 20 x 88 x 88 inches | 508 x 2235 x 2235 mm |
| Die Thickness (min. - max.) | 54 - 74 inches | 1371 - 1879 mm |
| Die Stroke | 42 inches | 1066 mm |
| Ejection Stroke | 10 inches | 254 mm |
| Ejection Force | 53 tons | 48.18 tons |
| Motor Size | 100 and 15 hp | 74.6 and 11.19 kw |
| Machine Size (L x W x H) | 45 x 13.6 x 13 feet | 13.7 x 4.1 x 3.9 m |
| Machine Weight | 265,000 pounds | 120,202 kg |
Description
Used, Prince Model 1656 CCA 160 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Helper Side Automatic Tie Bar Puller, Rebuilt by HPM with a II-1600-A Shot System Installed During Rebuild, Allen Bradley PLC 5/03 Solid State Controls with Panel View Display, Allen Bradley PLC 5/03 controls, second Hand, DCM-2793
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
