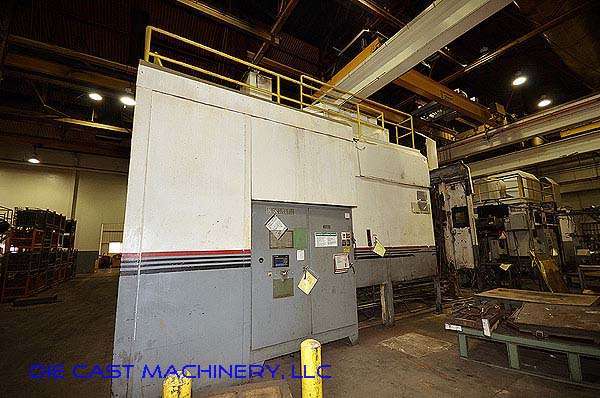

Used Ex-Cell-O B&T Model: 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Ex-Cell-O B&T |
| Size | 1600 Ton |
| Inventory Number | DCM-2762 |
Ex-Cell-O B&T - 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley 5-11 PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2762.
Features & Accessories
- New 1988 - Serial Number 8809
- Allen Bradley Model 5-11 PLC Control with LCD Display
- Top Operator Side Automatic Tie Bar Pulling System
- Hydraulic Ejection with Adjustable Stroke
- Three Core Circuits on Moving Platen and One Core Circuit on Front Platen
- Inserted Shot Position (Shot Block) with Center to -12 below center shot positions
- Rimrock 405 Servo Drive Ladler and Rimrock 410 Servo Drive Sprayer, Visi-Trak Shot Process Monitoring System
Item Specifications for DCM-2762
| US | Metric | |
| Factory Rated Tonnage: | 1600 | 1454 |
| Tie Bar Diameter: | 11 inches | 279.4 mm |
| Clearance Between Tie bars: | 51 inches | 1295.4 mm |
| Front Platen Size (T x W x H): | 21 x 84 x 98 inches | 508 x 2108.2 x 2438.4 mm |
| Moving Platen Size (T x W x H): | 20 x 84 x 84 inches | 482.25 x 2108.2 x 2108.2 mm |
| Die Thickness (min. - max.) | 38 - 62 inches | 965.2 - 1574.8 mm |
| Die Stroke (adjustable): | 27 - 34 inches | 685 - 863 mm |
| Ejection Stroke: | 10 inches | 254 mm |
| Motor Size | 125 hp | 93.25 kw |
| Machine Size (L x W x H) | 40 x 11 x 12 feet | 12.1 x 3.3 x 3.6 m |
| Machine Weight | 260,000 pounds | 118 MT |
Description
Used, Ex-Cell-O B&T Model 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley Model 5-11 PLC Control with LCD Display, Top Operator Side Automatic Tie Bar Pulling System, Hydraulic Ejection with Adjustable Stroke, Three Core Circuits on Moving Platen and One Core Circuit on Front Platen, Inserted Shot Position (Shot Block) with Center to -12 below center shot positions, Rimrock 405 Servo Drive Ladler and Rimrock 410 Servo Drive Sprayer, Visi-Trak Shot Process Monitoring System, Allen Bradley 5-11 PLC controls, second Hand, DCM-2762
