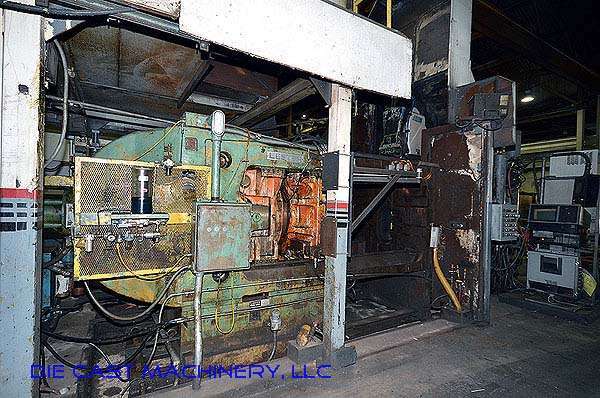

Used Lester Model: HP-1200X-SF 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 22| Status | Sold |
|---|---|
| Manufacturer | Lester |
| Model | HP-1200X-SF |
| Size | 1200 Ton |
| Inventory Number | DCM-2754 |
Lester - HP-1200X-SF 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2754.
Features & Accessories
- T-Slotted Platens
- Air Safety Ratchet
- Upgraded Allen Bradley Controls
- Upgraded Shot System with Visi-Trak Shot Process and Monitoring
- Four Post Hydraulic Trim Press
- Rimrock Multi-link automatic Ladle and Sprayer
Item Specifications for DCM-2754
| US | Metric | |
| Maximum Die Locking Pressure: | 1200 | 1090 |
| Die Height Adjustment (w/ die spacer rings): | 48 - 18 inches | 1219 - 457 mm |
| Die Stroke (adjustable) | 10.250 - 30 inches | 260 - 762 mm |
| Clearance between beams (Hor x Vert): | 42 inches by 42 inches | 1066 by 1066 mm |
| Moving Platen Size (Hor x Vert): | 65 inches by 65 inches | 1651 by 1651 mm |
| Maximum Die Size: | 65 inches by 42 inches | 1651 by 1066 mm |
| Ejector Cylinder Stroke (adjustable): | 0 - 8 inches | 0 - 203 mm |
| Ejector Cylinder Force: | 30 tons | 27 tons |
| Shot Positions (inserted, adjustable): | Center to -12 inches | center to 304 mm |
| Machine Controls: | Allen Bradley PLC 5 | Allen Bradley PLC 5 |
| Machine HMI | Allen Bradley Panel View 550 | Allen Bradley Panel View 550 |
| Approximate Machine Weight: | 112,000 pounds | 50,900 KG |
Description
Used, Lester Model HP-1200X-SF 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: T-Slotted Platens, Air Safety Ratchet, Upgraded Allen Bradley Controls, Upgraded Shot System with Visi-Trak Shot Process and Monitoring, Four Post Hydraulic Trim Press, Rimrock Multi-link automatic Ladle and Sprayer, Allen Bradley controls, second Hand, DCM-2754
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
