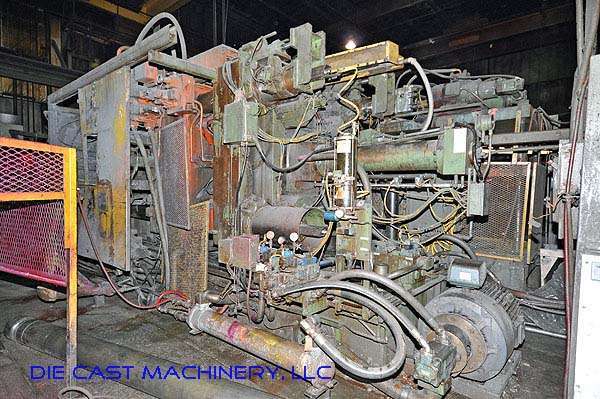

Used Prince Model: 1246 CCM 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1246 CCM |
| Size | 1200 Ton |
| Inventory Number | DCM-2732 |
Prince - 1246 CCM 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2732.
Features & Accessories
- Allen Bradley PLC Controls and Prince Binary Shot Control System
- Dual Automatic Tie Bar Pullers
- Prince Pro Manager
- Piston Intensification
- Inserted Shot Position
- Power Die Clamping
Item Specifications for DCM-2732
| US | Metric | |
| Rated Tonnage: | 1200 tons | 1090 metric tons |
| Tie Bar Diameter: | 9.5 inches | 241.3 mm |
| Clearance Between Tie bars: | 46.5 x 46.5 inches | 1181.1 x 1181.1 mm |
| Front Platen Size (T x W x H): | 17.25 x 75 x 85 inches | 438.15 x 1905 x 2159 mm |
| Moving Platen Size (T x W x H): | 15.75 x 75 x 75 inches | 400.05 x 1905 x 1905 mm |
| Die Thickness (min. - max.): | 24 inches - 44 inches | 609.6 mm - 1117.6 mm |
| Die Stroke: | 30 inches | 762 mm |
| Ejection Stroke: | 6 inches | 152.4 mm |
| Ejection Force: | 30 tons | 27.27 metric tons |
| Motor Size: | 125 hp | 93.25 kw |
| Machine Size (L x W x H): | 36 x 9 x 13 feet | 10.82 x 2.59 x 3.81 m |
| Machine Weight: | 170000 pounds | 77272.72 kg |
Description
Used, Prince Model 1246 CCM 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley PLC Controls and Prince Binary Shot Control System, Dual Automatic Tie Bar Pullers, Prince Pro Manager, Piston Intensification, Inserted Shot Position, Power Die Clamping, Allen Bradley PLC controls, second Hand, DCM-2732
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
