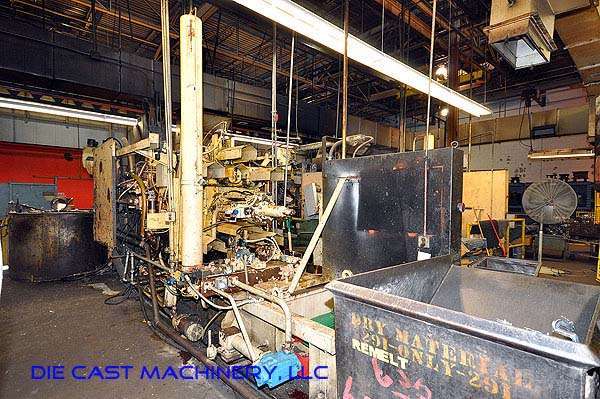

Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-600-A |
| Size | 600 Ton |
| Inventory Number | DCM-2532 |
HPM - II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2532.
Features & Accessories
- Hydraulic Bumper Plate Ejection
- C-Frame Shot End with close coupled Intensifier Cylinder
- Hydraulic Motorized Die Height Adjustment
- Two Core Circuits
- Trabon Automatic Linkage Lubrication System (grease)
Item Specifications for DCM-2532
| US | Metric | |
| Clamping Force: | 600 Tons | 544 tons |
| Maximum Die Thickness: | 26 inches | 660 mm |
| Minimum Die Thickness: | 14 inches | 355 mm |
| Platen Dimensions (horizontal x vertical): | 48 x 54.50 inches | 1219 x 1384 mm |
| Clearance between tie bars: | 29 inches | 736 mm |
| Tie Bar Diameter: | 6 inches | 152 mm |
| Shot Positions: | Center & -9 Inch | 228 mm |
Description
Used, HPM Model II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Bumper Plate Ejection, C-Frame Shot End with close coupled Intensifier Cylinder, Hydraulic Motorized Die Height Adjustment, Two Core Circuits, Trabon Automatic Linkage Lubrication System (grease), Allen Bradley controls, second Hand, DCM-2532
