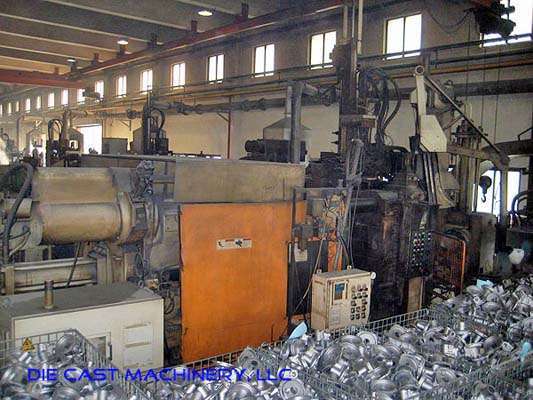

Used Ube Model: 800 NX 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Ube |
| Model | 800 NX |
| Size | 800 Metric Ton |
| Inventory Number | DCM-2503 |
Ube - 800 NX 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Omron PLC Solid State Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2503.
Features & Accessories
- Ube BEL automatic ladler
- Ube Automatic Sprayer
- Electronic Tie Bar Tonnage Monitoring System
- Fully Automatic Top Operator Side Tie Bar Puller
- Removable T-Slotted Bolster Plates
- Omron PLC Controls
Item Specifications for DCM-2503
| US | Metric | |
| Platen Size | 55.11 x 55.11 inches | 1,400 x x1,400 mm |
| Distance Between Tie Bars | 36.65 x 36.65 inches | 930 x 930 mm |
| Tie Bar Diameter | 7 inches | 180 mm |
| Die Stroke | 29.9 inches | 760 mm |
| Die Thickness (min - max) | 15.75 - 37.40 inches | 400 - 950 mm |
| Ejection Force | 38.5 tons | 35 tons |
| Ejection Stroke | 0 - 4.92 inches | 1 - 125 mm |
| Shot Force (max - min) | 72.6 - 36.3 tons | 66 - 33 tons |
| Shot Stroke | 26.7 inches | 680 mm |
| Plunger Tip Diameter (min - max) | 3.15, 3.54, 3.94 inches | 80, 90, 100 mm |
| Shot Positions | -9.8 inches | -250 mm |
| Machine Dimensions (L x W x H) with Ladler | 330 x 120 x 170 inches | 8382 x 3048 x 4318 mm |
Description
Used, Ube Model 800 NX 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Ube BEL automatic ladler, Ube Automatic Sprayer, Electronic Tie Bar Tonnage Monitoring System, Fully Automatic Top Operator Side Tie Bar Puller, Removable T-Slotted Bolster Plates, Omron PLC Controls, Omron PLC Solid State controls, second Hand, DCM-2503
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
