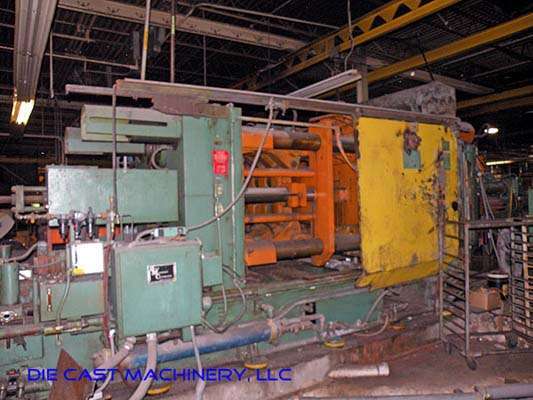

Used Birch Model: BMC-850-A 850 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Birch |
| Model | BMC-850-A |
| Size | 850 Tons |
| Inventory Number | DCM-2500 |
Birch - BMC-850-A 850 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2500.
Features & Accessories
- Inspect Under Power on factory floor
- New Control Panel with AB SLC 5/03, Panel View HMI Display, Motor Starter, wiring, etc. installed in 2006
- New Visi-Trak Sure-Track 2 Shot Control and Monitoring installed in 2006
- New Olmsted 50 mm meter out shot servo valve installed in 2006
- Hydraulic Bumper Plate Ejection System
- Electric Motorized Die Height System
- Adjustable Shot and Die Stroke
Item Specifications for DCM-2500
| US | Metric | |
| Locking Force: | 850 tons | 771 tons |
| Tie Bar Diameter: | 7.25 inches | 184 mm |
| Clearance Between Tie Bars: | 36.25 x 36.25 inches | 920 x 920 mm |
| Die Thickness (minimum - maximum): | 15 - 38 inches | 381 - 965 mm |
| Die Stroke (minimum - maximum): | 16 - 22 inches | 406 - 558 mm |
| Moving Platen Size (H x V x T): | 59.5 x 59.5 x 13 inches | 1511 x 1511 x 330 mm |
| Shot Positions: | Center and -9 inches | Center and -228.6 mm below center |
| Cylinder Stroke: | 26 - 30 inches | 660 - 762 mm |
| Power: | 75 HP | 55.95 kw |
| Machine Size: | 28 x 8 x 9 feet | 8.53 x 2.44 x 2.74 meters |
| Machine Weight: | 92,000 pounds | 46,000 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Birch Model BMC-850-A 850 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: New Control Panel with AB SLC 5/03, Panel View HMI Display, Motor Starter, wiring, etc. installed in 2006, New Visi-Trak Sure-Track 2 Shot Control and Monitoring installed in 2006, New Olmsted 50 mm meter out shot servo valve installed in 2006, Hydraulic Bumper Plate Ejection System, Electric Motorized Die Height System, Adjustable Shot and Die Stroke, Allen Bradley SLC 5/03 controls, second Hand, DCM-2500
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
