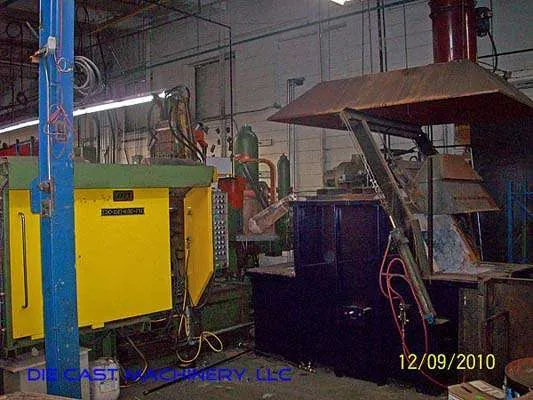

Used Zitai Model: ZDC-350T-V2BP 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Zitai |
| Model | ZDC-350T-V2BP |
| Size | 350 Metric Ton |
| Inventory Number | DCM-2446 |
Zitai - ZDC-350T-V2BP 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2446.
Features & Accessories
- Factory Automated Machine Cell with Ladler, Sprayer and Extractor
- Factory integrated Zitai ZSP-35P Auto Sprayer
- Factory integrated Zitai ZAL-35 Automatic Ladler
- Factory integrated Zitai ZPE-35 parts extractor
- Central Motorized Die Height Adjustment
- Hydraulic Bumper Plate Ejection System
- Two (2) Auxiliary Hydraulic Core Circuits
Item Specifications for DCM-2446
| US | Metric | |
| Rated Tonnage | 385 tons | 350 tons |
| Tie Bar Diameter | 4.92 inches | 125 mm |
| Clearance Between Tie bars | 23.19 x 23019 inches | 589 x 589 mm |
| Front Platen Size | 37.4 x 37.4 inches | 950 x 950 mm |
| Die Thickness (min - max) | 11.81 - 23.62 inches | 300 - 700 mm |
| Die Stroke | 16.54 inches | 420 mm |
| Ejection Stroke | 4.72 inches | 120 mm |
| Ejection Force | 25.9 tons | 23.5 tons |
| Motor Size | 30 hp | 22.5 kw |
| Machine Size | 21.33 x 6.56 x 9.51 feet | 6.5 x 2 x 2.9 meters |
| Machine Weight | 17.64 tons | 16 tons |
Video
Description
Used, Zitai Model ZDC-350T-V2BP 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Factory integrated Zitai ZSP-35P Auto Sprayer, Factory integrated Zitai ZAL-35 Automatic Ladler, Factory integrated Zitai ZPE-35 parts extractor, Central Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Two (2) Auxiliary Hydraulic Core Circuits, controls, second Hand, DCM-2446
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
