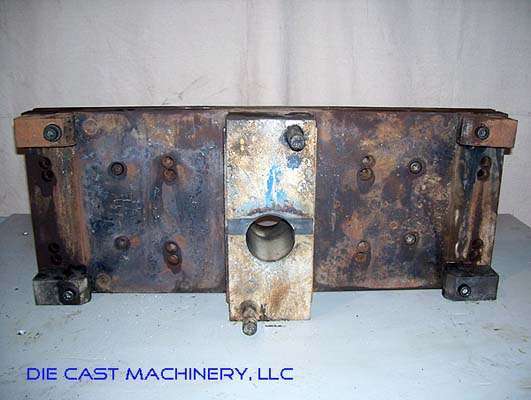

Used DME Model: DC-1215-A-HD 1215 inch Heavy Duty, Double Unit, Cold Chamber Aluminum master unit die holder

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerDME
ModelDC-1215-A-HD
Size1215 inch
Inventory NumberDCM-2406
Price$750

DME - DC-1215-A-HD 1215 inch Heavy Duty, Double Unit, Cold Chamber Aluminum master unit die holder, Not Applicable Controls

View Available DME Die Cast Tooling

Questions? Call (847) 360-9170 and mention DCM-2406.

Features & Accessories

  • Quick Die Change
  • Heavy Duty Design
  • Double Holder - holds two inserts
  • Cold Chamber Configuration
  • Ships from stock from our Waukegan warehouse

Item Specifications for DCM-2406

USMetric
Overall Width:14.875 inches377.825 mm
Overall Length:37.750 inches958.850 mm
Overall Height (thickness):22.250 inches565.150 mm
Cover Half Thickness:8.250 inches209.550 mm
Ejector Half Thickness:14 inches355.600 mm
Insert Size:11.875 x 14.875 x 4.875 inches301.625 x 377.825 x 123.825 mm
Approximate Weight:1794 pounds815.5 kg

Video

Description

Used, DME Model DC-1215-A-HD 1215 inch Heavy Duty, Double Unit, Cold Chamber Aluminum master unit die holder For_Sale, Features Include: Quick Die Change, Heavy Duty Design, Double Holder - holds two inserts, Cold Chamber Configuration, Ships from stock from our Waukegan warehouse, Not Applicable controls, second Hand, DCM-2406

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
