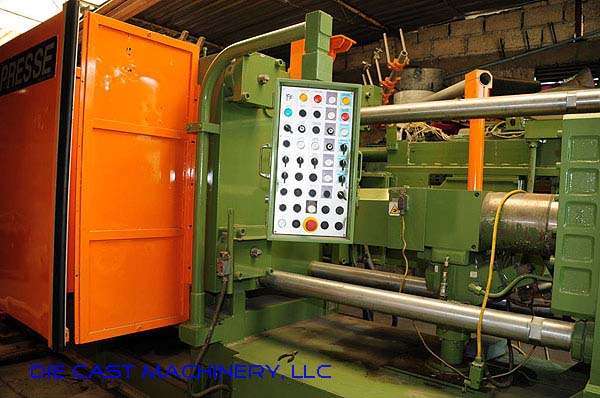

Used Italpresse Model: IP-550 604 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 26| Status | Sold |
|---|---|
| Manufacturer | Italpresse |
| Model | IP-550 |
| Size | 604 Metric Ton |
| Inventory Number | DCM-2237 |
Italpresse - IP-550 604 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Siemens S5 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2237.
Features & Accessories
- Aluminum & Magnesium Capable
- Italpresse Multi-Link Extractor
- Four Bar Mount Shot End with shot position adjustment, with Fully Proportional Shot Control System and multiplier intensification system with Piston Bottle hydraulic supply
- Hydraulic Bumper Plate Ejection System
- Siemens S5 Controls
- Fully Proportional hydraulics
- Trabon Automatic Lubrication System
Item Specifications for DCM-2237
| US | Metric | |
| Locking Force: | 666 tons | 604 tons |
| Injection Force: | 67.44 tons | 61.18 tons |
| Ejection Force: | 28.6 tons | 29.06 tons |
| Tie Bar Diameter: | 5.31 inches | 135 mm |
| Clearance Between Tie Bars: | 27 x 27 inches | 690 x 690 mm |
| Die Height (maximum - minimum): | 32 - 12 inches | 825 - 325 mm |
| Platens Dimensions: | .04 x .04 inches | 1.075 x 1.100 mm |
| Moving Platen Stroke: | 24.8 inches | 630 mm |
| Central Ejection Stroke: | 6.69 mm | 170 mm |
| Motor: | 40.23 HP | 30 KW |
| Weight: | 23.62 tons | 24 tons |
| Machine Dimensions (L x W x H): | 25.43 x 8.2 x 9.68 feet | 7.75 x 2.5 x 2.95 m |
Video
Description
Used, Italpresse Model IP-550 604 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Italpresse Multi-Link Extractor, Four Bar Mount Shot End with shot position adjustment, with Fully Proportional Shot Control System and multiplier intensification system with Piston Bottle hydraulic supply, Hydraulic Bumper Plate Ejection System, Siemens S5 Controls, Fully Proportional hydraulics, Trabon Automatic Lubrication System, Siemens S5 controls, second Hand, DCM-2237
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
