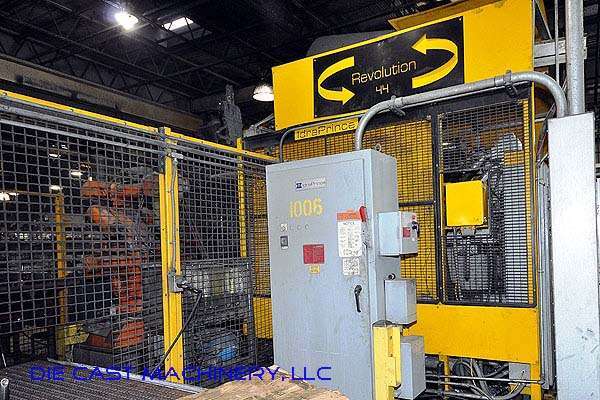

Used Buhler Prince Model: 44 Two Platen 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 5| Status | Sold |
|---|---|
| Manufacturer | Buhler Prince |
| Model | 44 Two Platen |
| Size | 1200 Ton |
| Inventory Number | DCM-2142 |
Buhler Prince - 44 Two Platen 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-2142.
Features & Accessories
- Very Latest in Technology from BuhlerPrince
- ABB six axis, model 6600 Extractor
- Rimrock 305 Automatic Ladler with Epic Controls
- Rimrock 410 Die Sprayer with Epic Controls
- Metal Mechanic 50 ton Hydraulic Trim Press
Item Specifications for DCM-2142
| US | Metric | |
| Machine Model: | 44 Two Platen | 44 Two Platen |
| Maximum Rated Tonnage: | 1,200 U.S. Tons | 1088 Metric Tons |
| Tie Bar Diameter: | 8.5 inches | 215 mm |
| Clearance between Tie Bars: | 44 inches | 1117 mm |
| Maximum Die Thickness: | 50 inches | 1270 mm |
| Minimum Die Thickness: | 30 inches | 762 mm |
| Maximum Die Stroke: | 30 inches | 762 mm |
| Machine Weight: | 150,000 pounds | 68,038 KG |
| Ejector Platen Stroke: | 6 inches | 152 mm |
| Ejector Platen Force: | 21.5 tons | 19.5 Metric Tons |
| Shot Positions: | centerline and 12 inches below centerline | centerline and 304 mm below centerline |
| Shot Stroke: | 24 to 36 inches | 609 to 914 mm |
Description
Used, Buhler Prince Model 44 Two Platen 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Very Latest in Technology from BuhlerPrince, ABB six axis, model 6600 Extractor, Rimrock 305 Automatic Ladler with Epic Controls, Rimrock 410 Die Sprayer with Epic Controls, Metal Mechanic 50 ton Hydraulic Trim Press, Allen Bradley controls, second Hand, DCM-2142
