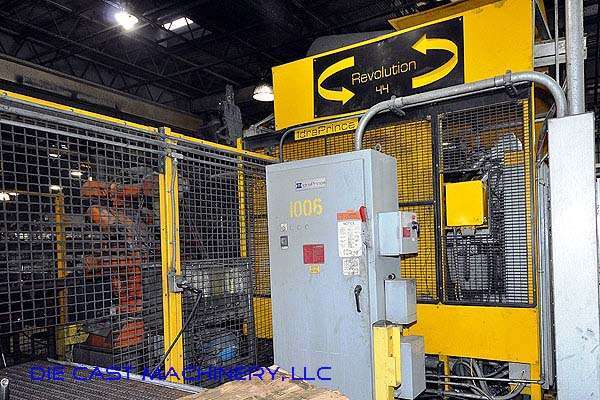

Used Buhler Prince Model: 44 Two Paten 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerBuhler Prince
Model44 Two Paten
Size1200 Ton
Inventory NumberDCM-2141

Buhler Prince - 44 Two Paten 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-2141.

Features & Accessories

  • Very Latest in Technology from BuhlerPrince
  • ABB six axis, model 6600 Extractor
  • Rimrock 305 Automatic Ladler with Epic Controls
  • Rimrock 410 Die Sprayer with Epic Controls
  • Metal Mechanic 50 ton Hydraulic Trim Press

Item Specifications for DCM-2141

USMetric
Machine Model:44 Two Platen44 Two Platen
Maximum Rated Tonnage:1,200 U.S. Tons1088 Metric Tons
Tie Bar Diameter:8.5 inches215 mm
Clearance between Tie Bars:44 inches1117 mm
Maximum Die Thickness:50 inches1270 mm
Minimum Die Thickness:30 inches762 mm
Maximum Die Stroke:30 inches762 mm
Machine Weight:150,000 pounds68,038 KG
Ejector Platen Stroke:6 inches152 mm
Ejector Platen Force:21.5 US Tons19.5 Metric Tons
Shot Positions:centerline and 12 inches below centerlinecenterline and 304 mm below centerline
Shot Stroke:24 to 36 inches609 to 914 mm

Description

Used, Buhler Prince Model 44 Two Paten 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Very Latest in Technology from BuhlerPrince, ABB six axis, model 6600 Extractor, Rimrock 305 Automatic Ladler with Epic Controls, Rimrock 410 Die Sprayer with Epic Controls, Metal Mechanic 50 ton Hydraulic Trim Press, Allen Bradley controls, second Hand, DCM-2141

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
