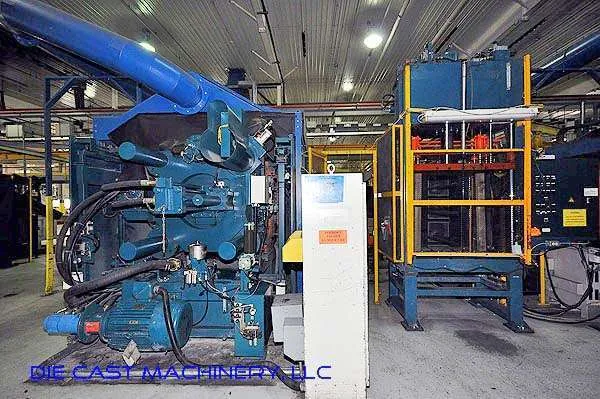

Used Ube Model: UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ube Model: UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 14
StatusSold
ManufacturerUbe
ModelUA 900it
Size900 Ton
Inventory NumberDCM-2039

Ube - UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-2039.

Features & Accessories

  • New in 2007
  • Ube BEL auto-ladle
  • Electronic Tie Bar Tonnage Monitoring System
  • Fully Automatic Top Operator Side Tie Bar Puller
  • Removable T-Slotted Bolster Plates
  • Allen Bradley SLC 5/03 Solid State Controls
  • Complete Cell with Ube Ladle, Wollin Sprayer, ABB Robot, Ajax Melting Furnace, Quantum Trim Press, Forced Air Cooling Station

Item Specifications for DCM-2039

USMetric
Platen Size55.11 x 55.11 inches1,400 x x1,400 mm
Distance Between Tie Bars36.65 x 36.65 inches930 x 930 mm
Tie Bar Diameter7 inches180 mm
Die Stroke29.9 inches760 mm
Die Thickness (min - max)15.75 - 37.40 inches400 - 950 mm
Ejection Force38.5 tons35 tons
Ejection Stroke0 - 4.92 inches1 - 125 mm
Shot Force (max - min)72.6 - 36.3 tons66 - 33 tons
Shot Stroke26.7 inches675 mm
Plunger Tip Diameter (min - max)3.15, 3.54, 3.94 inches80, 90, 100 mm
Shot Positionscenter to -12 inchescenter to -300 mm
Machine Dimensions (L x W x H) with Ladler330 x 120 x 170 inches8382 x 3048 x 4318 mm

Description

Used, Ube Model UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Ube BEL auto-ladle, Electronic Tie Bar Tonnage Monitoring System, Fully Automatic Top Operator Side Tie Bar Puller, Removable T-Slotted Bolster Plates, Allen Bradley SLC 5/03 Solid State Controls, Complete Cell with Ube Ladle, Wollin Sprayer, ABB Robot, Ajax Melting Furnace, Quantum Trim Press, Forced Air Cooling Station, Allen Bradley SLC 5/03 Solid State controls, second Hand, DCM-2039
