SOLD

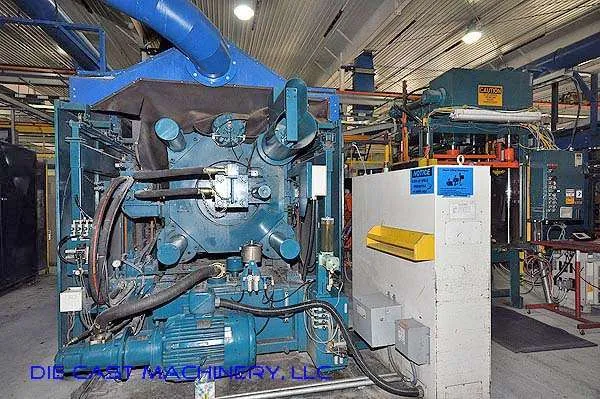

Used Ube Model: UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ube Model: UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 14
StatusSold
ManufacturerUbe
ModelUA 900it
Size900 Ton
Inventory NumberDCM-2021

Ube - UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-2021.

Features & Accessories

  • 16,332 Hours
  • Ube BEL auto-ladle
  • Electronic Tie Bar Tonnage Monitoring System
  • Fully Automatic Top Operator Side Tie Bar Puller
  • Removable T-Slotted Bolster Plates
  • Allen Bradley SLC 5/03 Solid State Controls
  • Complete Cell with Ube Ladle, Wollin Sprayer, ABB Robot, Ajax Melting Furnace, Metal Mechanics Trim Press, Forced Air Cooling Station

Item Specifications for DCM-2021

USMetric
Platen Size55.11 x 55.11 inches1,400 x x1,400 mm
Distance Between Tie Bars36.65 x 36.65 inches930 x 930 mm
Tie Bar Diameter7 inches180 mm
Die Stroke29.9 inches760 mm
Die Thickness (min - max)15.75 - 37.40 inches400 - 950 mm
Ejection Force38.5 tons35 tons
Ejection Stroke0 - 4.92 inches1 - 125 mm
Shot Force (max - min)72.6 - 36.3 tons66 - 33 tons
Shot Stroke26.7 inches675 mm
Plunger Tip Diameter (min - max)3.15, 3.54, 3.94 inches80, 90, 100 mm
Shot Positionscenter to -12 inchescenter to -300 mm
Machine Dimensions (L x W x H) with Ladler330 x 120 x 170 inches8382 x 3048 x 4318 mm

Description

Used, Ube Model UA 900it 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Ube BEL auto-ladle, Electronic Tie Bar Tonnage Monitoring System, Fully Automatic Top Operator Side Tie Bar Puller, Removable T-Slotted Bolster Plates, Allen Bradley SLC 5/03 Solid State Controls, Complete Cell with Ube Ladle, Wollin Sprayer, ABB Robot, Ajax Melting Furnace, Metal Mechanics Trim Press, Forced Air Cooling Station, Allen Bradley SLC 5/03 Solid State controls, second Hand, DCM-2021

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
