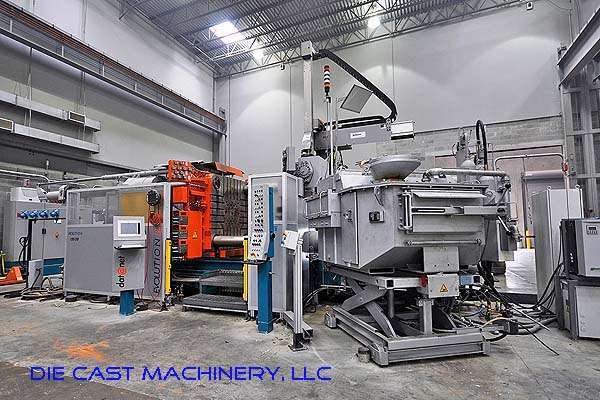

Used Buhler Model: Evolution B 120 DS 12000 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | Evolution B 120 DS |
| Size | 12000 kN |
| Inventory Number | DCM-1989 |
Buhler - Evolution B 120 DS 12000 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-1989.
Features & Accessories
- New 2008 - Only 7,200 total injection cycles
- Automatic Tie Bar Pulling - Top Operator Tie Bar
- BuhlSpray via Acheson Dag MCT-2 two axis linear sprayer
- BuhlTemp Mold Temperature Control System
- Buhler DS Shot System
Item Specifications for DCM-1989
| US | Metric | |
| Clamping Force | 1348 tons | 12000 kN |
| Die Thickness (Minimum - Maximum) | 15.75 to 39.37 inches | 400 to 1000 mm |
| Platen Dimensions (Horizontal x Vertical) | 63.38 x 73.42 inches | 1610 x 1865 mm |
| Clearance Between Tie Bars | 39.37 inches | 1000 mm |
| Moving Platen Stroke | 21.85 inches | 800 mm |
| Maximum Injection Stroke | 23.6 inches | 600 mm |
| Injection Positions | 0 to -11.8 inches | 0 to -300 mm |
| Maximum Injection Force Intensified | 78.6 tons | 703 kN |
| Maximum Ejector Force | 38 tons | 340 kN |
| Maximum Ejector Stroke | 6.50 inches | 165 mm |
| Main Motor | 60 Hp | 45 kW |
| Machine Weight (ready for production) | 118,800 Pounds | 53,636 kg |
Video
Description
Used, Buhler Model Evolution B 120 DS 12000 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Automatic Tie Bar Pulling - Top Operator Tie Bar, BuhlSpray via Acheson Dag MCT-2 two axis linear sprayer, BuhlTemp Mold Temperature Control System, Buhler DS Shot System, controls, second Hand, DCM-1989
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
