Used Toshiba Model: DC-650-CE 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

| Status | Sold |
|---|---|
| Manufacturer | Toshiba |
| Model | DC-650-CE |
| Size | 650 Metric Ton |
| Inventory Number | DCM-1900 |

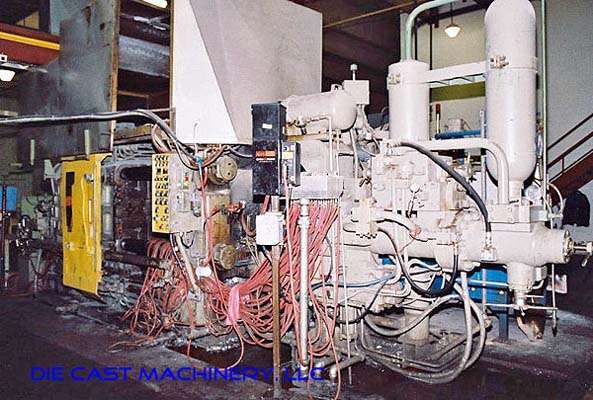

Toshiba - DC-650-CE 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-1900.
Item Specifications for DCM-1900
| US | Metric | |
| Locking Force | 720 tons | 650 tons |
| Platen Size | 47.25 inch x 47.25 inch | 1200 mm x 1200 mm |
| Tie Bar Diameter | 6.69 inch | 170 mm |
| Clearance Between Tie Bars (V x H) | 29.52 inches x 29.52 inches | 750 mm x 750 mm |
| Die Thickness (max - min) | 13.78 inches - 35.43 inches | 350 mm - 900 mm |
| Die Stroke | 23.62 inches | 600 mm |
| Injection Stroke (adjustable) | 19.68 inches - 24 inches | 500 mm - 610 mm |
| Injection Positions | Center and -6-89 inches | 0 and -175 mm |
| Ejection Stroke per Ejection Force | 4.9 inches per 33 tons | 125mm per 30 mt |
| Pump Motors | 30 and 25 HP | 22 and 18.5 kw |
| Machine Weight | 66,000 pounds | 30,000 Kg |
| Machine Dimensions (L x W x H) | 27 feet x 7 feet 6 inches x 10 feet 1 inch | 8 meters x 2.3 meters x 3 meters |
Description
Used, Toshiba Model DC-650-CE 650 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include:, controls, second Hand, DCM-1900
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
