SOLD

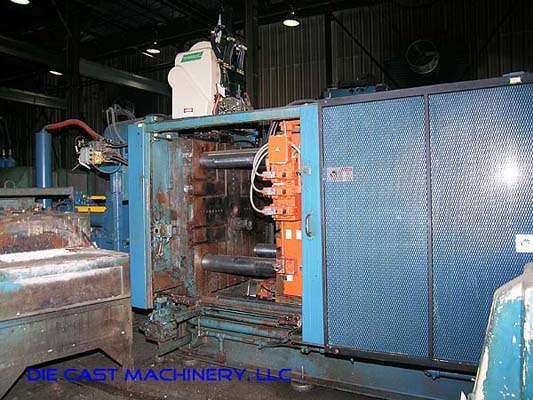

Used Ex-Cell-O B&T Model: 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerEx-Cell-O B&T
Size700 Ton
Inventory NumberDCM-1865

Ex-Cell-O B&T - 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-1865.

Item Specifications for DCM-1865

USMetric
Locking Force700 tons636 MT
Tie Bar Diameter6.5 inches165 mm
Clearance Between Tie Bars33 inches838 mm
Die Thickness (minimum - maximum)12 - 36 inches304 -914 mm
Die Stroke (minimum - maximum)23.5 inches596 mm
Moving Platen Size54.5 x 54.5 inches1384 x 1384 mm
Shot Positions5 inches127 mm
Shot Stroke23.5 inches596 mm
Power480/3/60480/3/60
Machine Size8 x 26 feet2.4 x 7.9 m
Machine Weight72,000 pounds26.8 MT

Description

Used, Ex-Cell-O B&T Model 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include:, Allen Bradley controls, second Hand, DCM-1865

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
