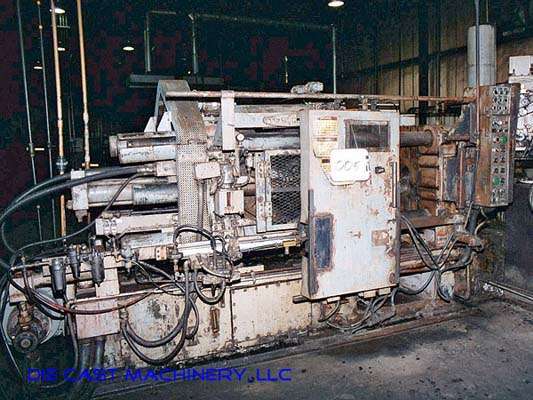

Used Toshiba Model: DC-320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 16| Status | Sold |
|---|---|
| Manufacturer | Toshiba |
| Model | DC-320 |
| Size | 320 Metric Ton |
| Inventory Number | DCM-1341 |
Toshiba - DC-320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-1341.
Features & Accessories
- Motorized Die Height
- Air Safety Ratchet
- Toshiba Auto Ladle
- Toshiba PLC Controls
Item Specifications for DCM-1341
| US | Metric | |
| Locking Force: | 352 tons | 320 tons |
| Platen Size: | 36.25 x 36.25 inches | 920 x 920 mm |
| Distance Between Tie Bars: | 22 x 22 inches | 560 x 560 mm |
| Tie Bar Diameter: | 4.75 inches | 120 mm |
| Die Thickness (min - max): | 12 - 27 inches | 300 - 680 mm |
| Die Stroke: | 15 inches | 380 mm |
| Injection Force: | 11 to 33 tons | 10 to 30 tons |
| Injection Stroke: | 17.75 inches | 450 mm |
| Injection Position: | Center and -6 inches | Center and -125 mm |
| Ejector Stroke: | 3.52 inches | 90 mm |
| Machine Size (L x W x H): | 20 x 6.75 x 8.58 feet | 6.09 x 2.04 x 2.6 meters |
| Machine Weight: | 24,300 pounds | 11,000 kg |
Description
Used, Toshiba Model DC-320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Motorized Die Height, Air Safety Ratchet, Toshiba Auto Ladle, Toshiba PLC Controls, Toshiba PLC controls, second Hand, DCM-1341
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
