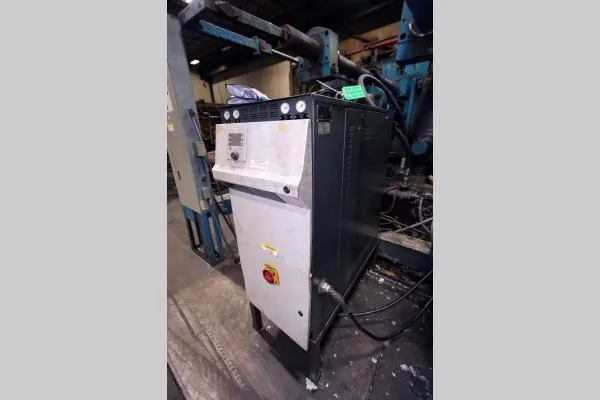

Used Regloplas Model: 300LD/40/FM65/1K/RT100 80 kW (40 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerRegloplas
Model300LD/40/FM65/1K/RT100
Size80 kW (40 kw per zone)
Inventory NumberDCM-6079

Regloplas - 300LD/40/FM65/1K/RT100 80 kW (40 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, RT100 Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-6079.

Features & Accessories

  • Regloplas 80 KW Dual Zone - 40 kw per Zone - Hot Oil Temperature Control Unit with water cooling circuit
  • Regloplas FM-65 Magnetic Drive Pumps
  • Equipped with RT100 Controller
  • Separate expansion vessel

Item Specifications for DCM-6079

USMetric
Main Heater Power (Zone #1 & 2):40 kW40 kW
Pump Motor Size (Zone #1):3.8 HP2.83 KW
Flow Rate (Zone #1):23 gallons per minute90 liters per minute
Connection size/type (Zone #1):3/4 inch NPT3/4 inch NPT
Maximum Operating Temperature:572 degrees F300 degrees C
Power Requirements at 45.6 Amps:480 volt / 3 phase / 60 cycle480 volt / 3 phase / 60 cycle
Overall Size (L x W x H):57 x 21 x 53 inches1346 x 533 x 1346 mmm
Weight:750 Pounds340 kg

Documents

Description

Used, Regloplas Model 300LD/40/FM65/1K/RT100 80 kW (40 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Regloplas FM-65 Magnetic Drive Pumps, Equipped with RT100 Controller, Separate expansion vessel, RT100 controls, second Hand, DCM-6079
