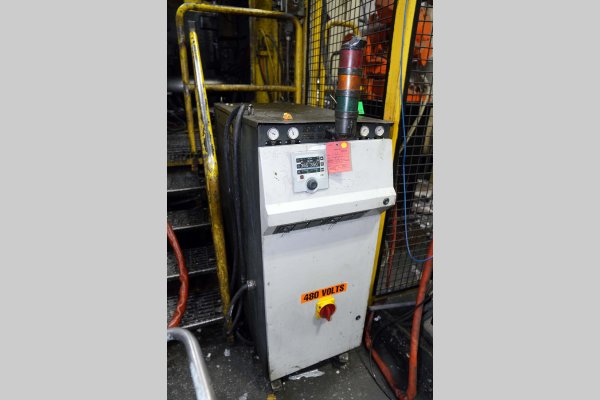

Used Regloplas Model: 300LD/40/FM65/1K/RT100 80 kW (40 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 4| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Regloplas |
| Model | 300LD/40/FM65/1K/RT100 |
| Size | 80 kW (40 kw per zone) |
| Inventory Number | DCM-5979 |
Regloplas - 300LD/40/FM65/1K/RT100 80 kW (40 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, RT100 Controls
Questions? Call (847) 360-9170 and mention DCM-5979.
Features & Accessories
- 40 KW Per Zone, Dual Zone, Total 80 KW Heating Capacity
- Regloplas FM-65 Magnetic Drive Pumps
- Regloplas
- Separate expansion vessel
- Equipped with R100 Controller
Item Specifications for DCM-5979
| US | Metric | |
| Main Heater Power (Zone #1 & 2): | 40 kW | 40 kW |
| Pump Motor Size (Zone #1): | 3.8 HP | 2.83 KW |
| Flow Rate (Zone #1): | 23 gallons per minute | 90 liters per minute |
| Connection size/type (Zone #1): | 3/4 inch NPT | 3/4 inch NPT |
| Maximum Operating Temperature: | 572 degrees F | 300 degrees C |
| Power Requirements at 45.6 Amps: | 480 volt / 3 phase / 60 cycle | 480 volt / 3 phase / 60 cycle |
| Overall Size (L x W x H): | 57 x 21 x 53 inches | 1346 x 533 x 1346 mmm |
| Weight: | 798 Pounds | 361 kg |
Documents
Description
Used, Regloplas Model 300LD/40/FM65/1K/RT100 80 kW (40 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Regloplas FM-65 Magnetic Drive Pumps, Regloplas, Separate expansion vessel, Equipped with R100 Controller, RT100 controls, second Hand, DCM-5979
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
