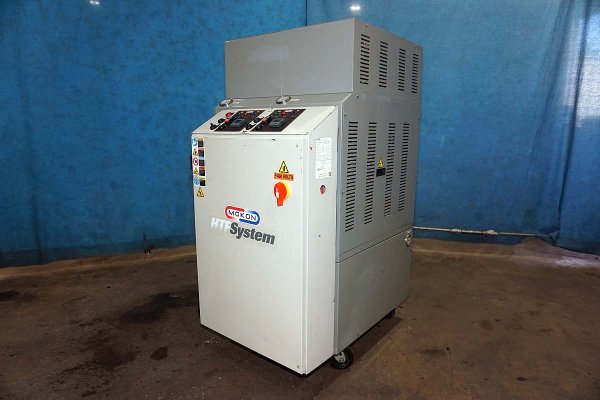

Used Mokon Model: H64224QX 48 kW (24 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

1 / 66

Status	Sold
Manufacturer	Mokon
Model	H64224QX
Size	48 kW (24 kw per zone)
Inventory Number	DCM-5899

Mokon - H64224QX 48 kW (24 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls

View Available Hot Oil Units

See available Hot Oil Units Print PDF Play Video

Questions? Call (847) 360-9170 and mention DCM-5899.

Features & Accessories

New in 2022
HTF 600 Series Mokon Dependability
Eurotherm 3216 Digital PID Controller
Built-in pump pressure relief valve
Water Cooling Circuit
Unit on casters for easy movement

Item Specifications for DCM-5899

	US	Metric
Main Heater Power (Zone #1):	24 KW	24 KW
Pump Motor Size (Zone #1):	2 HP	1.49 KW
Flow Rate (Zone #1):	20 gallons per minute	75.70 liters per minute
Connection size/type (Zone #1):	1 inch NPT	1 inch NPT
Main Heater Power (Zone #2):	24 KW	24 KW
Pump Motor Size (Zone #2):	2 HP	1.49 KW
Flow Rate (Zone #2):	20 gallons per minute	75.70 liters per minute
Connection size/type (Zone #2):	1 inch NPT	1 inch NPT
Maximum Operating Temperature:	600 degrees F	316 degrees C
Overall Size (L x W x H):	41 x 30 x 62 inches	1041 x 762 x 1575 mm
Full Load Amps @ 460/3/60:	69.00 amp	69.00 amp

Video

Documents

Mokon Manual for Hot Oil Temperature Control Units Models H4 - H5 - H6 and H8 Series - REV.GPDF · 1.5 MB
Mokon H6 Series Electrical and Hydrauilc Flow and Mechanical Schematics - E4224AAW-CPDF · 722 KB
Eurotherm 3200 manual - 682.93183.00PDF · 529 KB
Mokon_HTF_System_Instruction_Manual_H4_H5_H6_MK_HC_XCPDF · 883 KB
HTF_500_Series_BulletinPDF · 2.3 MB
Mokon 500 seriesPDF · 318 KB
Mokon_HTF-600_System_Troubleshooting_GuidePDF · 162 KB

Description

Used, Mokon Model H64224QX 48 kW (24 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 600 Series Mokon Dependability, Eurotherm 3216 Digital PID Controller, Built-in pump pressure relief valve, Water Cooling Circuit, Unit on casters for easy movement, Eurotherm 3216 controls, second Hand, DCM-5899
