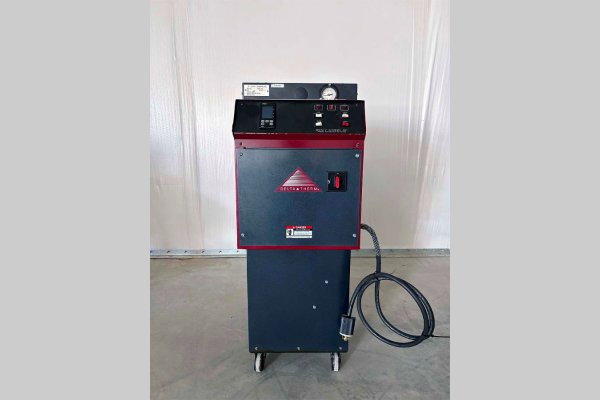

Used Delta T Systems Model: T1221MS 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerDelta T Systems
ModelT1221MS
Size12 KW
Inventory NumberDCM-5888

Delta T Systems - T1221MS 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Omron E5EN Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5888.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • Positive Displacement Pump with Mechanical Pump Seals
  • Easy to Programm and Operate Microprocessor-based PID controller
  • Manual Oil By-Pass Valve and Piping - alows unit to maintin temperature while process is being switched over
  • Factory Installed Optional Water-Cooled Tube-In-Shell Heat Exchanger for Process Cooling
  • Solid State Heating Contactor, Over Temperature Protection
  • Unit on casters for easy movement

Item Specifications for DCM-5888

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):1 HP.75 KW
Flow Rate (Zone #1):10 Gallong Per Minute (GPM)38 Liters Per Minute (LPM)
Connection size/type:1 inch NPT1 inch NPT
Maximum Operating Temperature:550 degrees F288 degrees C
Power Requirements @ 15 Amps:460 volts / 3 phase / 60 cycle460 volts / 3 phase / 60 cycle
Dimensions:18 X 37 X 46 inches457 x 938 x 1188 mm
Weight:435 Pounds198 kg

Description

Used, Delta T Systems Model T1221MS 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Positive Displacement Pump with Mechanical Pump Seals, Easy to Programm and Operate Microprocessor-based PID controller, Manual Oil By-Pass Valve and Piping - alows unit to maintin temperature while process is being switched over, Factory Installed Optional Water-Cooled Tube-In-Shell Heat Exchanger for Process Cooling, Solid State Heating Contactor, Over Temperature Protection, Unit on casters for easy movement, Omron E5EN controls, second Hand, DCM-5888

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
