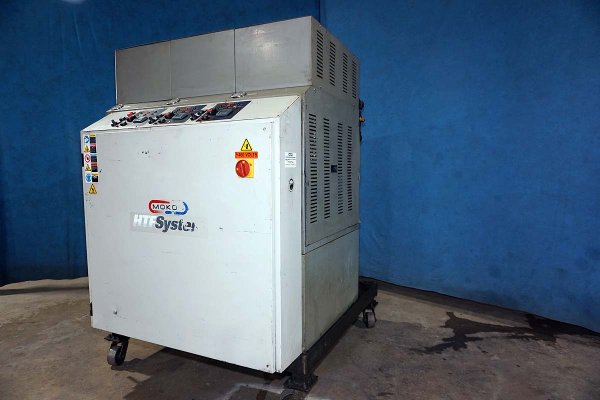

Used Mokon Model: H44318QX 54 kw (18 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 75| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H44318QX |
| Size | 54 kw (18 kW per zone) |
| Inventory Number | DCM-5871 |
Mokon - H44318QX 54 kw (18 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Solid State Digital Temperature Controler with PID Capability Controls
Questions? Call (847) 360-9170 and mention DCM-5871.
Features & Accessories
- Mokon HTF 500 Series Mokon Dependability
- Water Cooling Circuit for Process Cooling
- Built-in pump pressure relief valve
- Unit on casters for easy movement
- Eurotherm 3216 Solid State Digital Temperature Controller with PID Capability
Item Specifications for DCM-5871
| US | Metric | |
| Main Heater Power Per Zones - Total kW: | 18 kW - 54 kW | 18 kW - 54 kW |
| Pump Motor Size Per (Zones 1, 2, & 3): | 1 HP, 1,160 RPM | .75 KW @ 1,160 RPM |
| Flow Rate Per (Zones 1, 2, & 3): | 10 gallons per minute | 37.85 liters per minute |
| Connection type Per (Zones 1, 2, & 3): | 3/4 Inch NPT | 3/4 inch NPT |
| Maximum Operating Temperature: | 500 Degrees Fahrenheit | 260 degrees C |
| Overall Size (L x W x H): | 48 x 48 x 68 inches | 1,219 x 1,219 x 1,727 mm |
| Power Requirements: | 480 Volt / 3 phase / 60 cycle | 460 Volt / 3 phase / 60 cycle |
| Full Load Amps @ 460/3/60: | 73.32 amps | 73.32 amps |
Video
Documents
- Mokon_H4,_H5,_H6_Troubleshooting_GuidePDF · 163 KB
- Eurotherm 3200 manual - 682.93183.00PDF · 529 KB
Description
Used, Mokon Model H44318QX 54 kw (18 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Mokon HTF 500 Series Mokon Dependability, Water Cooling Circuit for Process Cooling, Built-in pump pressure relief valve, Unit on casters for easy movement, Eurotherm 3216 Solid State Digital Temperature Controller with PID Capability, Eurotherm 3216 Solid State Digital Temperature Controler with PID Capability controls, second Hand, DCM-5871
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
