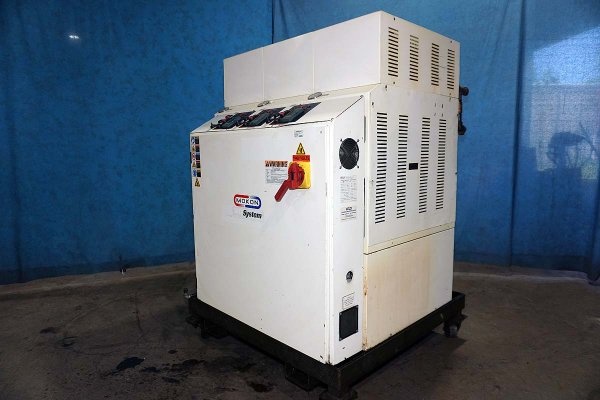

Used Mokon Model: H44324XAO1 72 kW (24 kw per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 77| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Mokon |
| Model | H44324XAO1 |
| Size | 72 kW (24 kw per zone) |
| Inventory Number | DCM-5868 |
Mokon - H44324XAO1 72 kW (24 kw per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3208 Solid State Digital Temperature Controller with PID Capability Controls
Questions? Call (847) 360-9170 and mention DCM-5868.
Features & Accessories
- Mokon HTF 500 Series Mokon Dependability
- Water Cooling Circuit for Process Cooling
- Built-in pump pressure relief valve
- Unit on casters for easy movement
- Eurotherm 3208 Solid State Digital Temperature Controller with PID Capability
Item Specifications for DCM-5868
| US | Metric | |
| Main Heater Power Per Zone - Total kW: | 24 kW - Total 72 kW | 24 kW - Total 72 kW |
| Pump Motor Size Per (Zones 1, 2, & 3): | 1 HP, 1,150 RPM | .75 KW @ 1,150 RPM |
| Flow Rate Per (Zones 1, 2, & 3): | 10 gallons per minute | 37.85 liters per minute |
| Connection size/type Per (Zones 1, 2, & 3): | 3/4 Inch NPT | 3/4 Inch NPT |
| Maximum Operating Temperature: | 500 Degrees Fahrenheit | 260 degrees C |
| Overall Size (L x W x H): | 48 x 48 x 68 inches | 1,219 x 1,219 x 1,727 mm |
| Power Requirements: | 480 Volt / 3 phase / 60 cycle | 480 Volt / 3 phase / 60 cycle |
| Full Load Amps @ 460/3/60: | 97 Amps | 97 Amps |
Video
Description
Used, Mokon Model H44324XAO1 72 kW (24 kw per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Mokon HTF 500 Series Mokon Dependability, Water Cooling Circuit for Process Cooling, Built-in pump pressure relief valve, Unit on casters for easy movement, Eurotherm 3208 Solid State Digital Temperature Controller with PID Capability, Eurotherm 3208 Solid State Digital Temperature Controller with PID Capability controls, second Hand, DCM-5868
