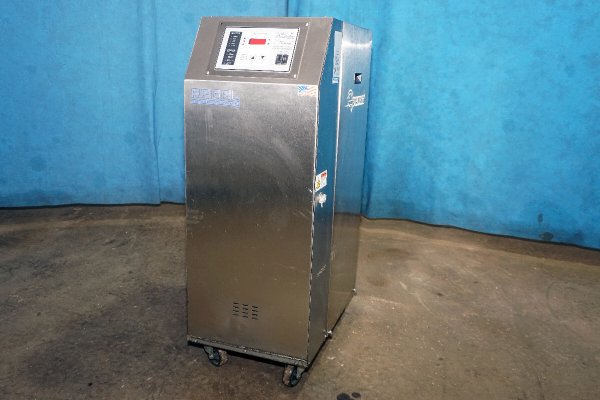

Used Advantage Model: RK-1230HC-41D3 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

Used Advantage Model: RK-1230HC-41D3 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit1 / 38
StatusSold
ManufacturerAdvantage
ModelRK-1230HC-41D3
Size12 kW
Inventory NumberDCM-5749

Advantage - RK-1230HC-41D3 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Advantage Regal Series One Digital Sold State Microprocessor PID Control Instrument Controls

View Available Hot Oil Units

See available Hot Oil UnitsPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-5749.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • Advantage Regal Series One Digital Sold State Microprocessor PID Control Instrument with Easy to use menu driven controller
  • Low pressure, high flow centrifugal pump
  • Stainless steel enclosure panels
  • Unit on casters for easy movement

Item Specifications for DCM-5749

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):1 HP @ 3,470 RPM.75 KW @ 3,470 RPM
Flow Rate (Zone #1):30 gallons per minute @ 26 psi113 liters per minute @ 1.79 BAR
Connection size/type (Zone #1):1 inch NPT25.4 mm NPT
Maximum Operating Temperature:500 degrees F260 degrees C
Overall Size (L x W x H):38 x 16 x 44 inches965 x 407 x 1118 mm
Weight:345 pounds157 kg
Full Load Amps @ 460/3/60:15.84 amps15.84 amps

Video

Documents

Description

Used, Advantage Model RK-1230HC-41D3 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Advantage Regal Series One Digital Sold State Microprocessor PID Control Instrument with Easy to use menu driven controller, Low pressure, high flow centrifugal pump, Stainless steel enclosure panels, Unit on casters for easy movement, Advantage Regal Series One Digital Sold State Microprocessor PID Control Instrument controls, second Hand, DCM-5749

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
